VELUX BBX 0000 | Vapour barrier collar

VELUX BBX 0000 | Vapour barrier collar

Write a review
320,92 kr inc. VAT, excl. shipping
(256,74 kr excl. VAT and shipping)
ODV-BBX-CK01-0000

Ships within 13 business days after receipt of your payment
+ −
Add to wish list

The range of VELUX installation products make the professional installation of your roof windows quick, simple and safe. All original VELUX installation products are compatible to ensure that your roof window is weathertight and safe connected to the roof construction and has an excellent finish on the inside.

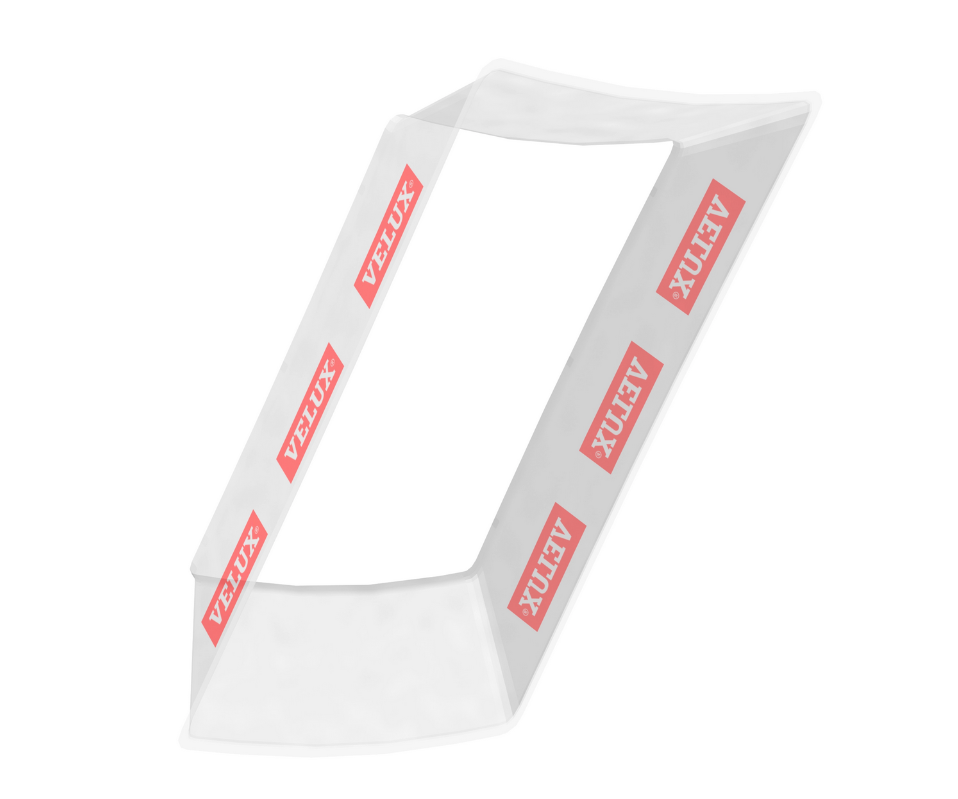

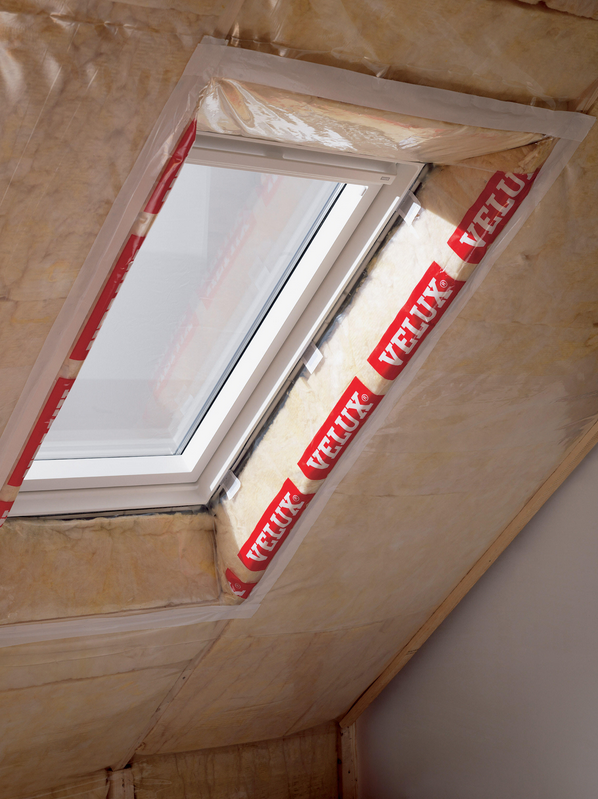

VELUX BBX - vapour barrier collar, including assembly tool for a vapour and airtight solution.

Vapour barrier collar BBX:

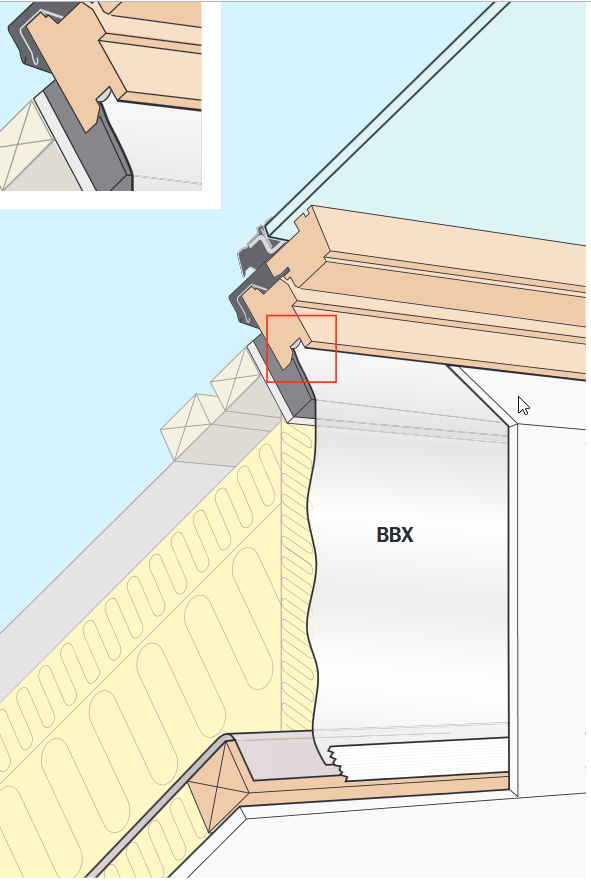

  •  helps prevent condensation from forming in the roof construction,

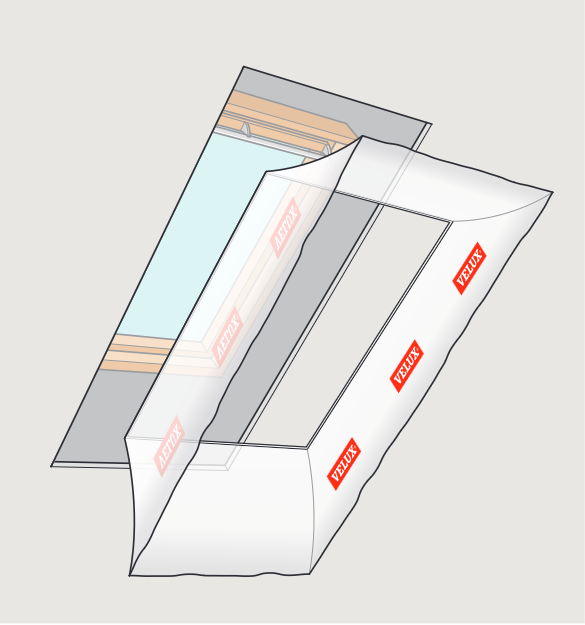

  •  complete Vapour Barrier Collar, fully welded in all corners,
  •  a fully welded rubber gasket with double pressure seal guarantees speedy installation and a vapour and air tight solution,
  •  reinforced corners for extra security against perforation,

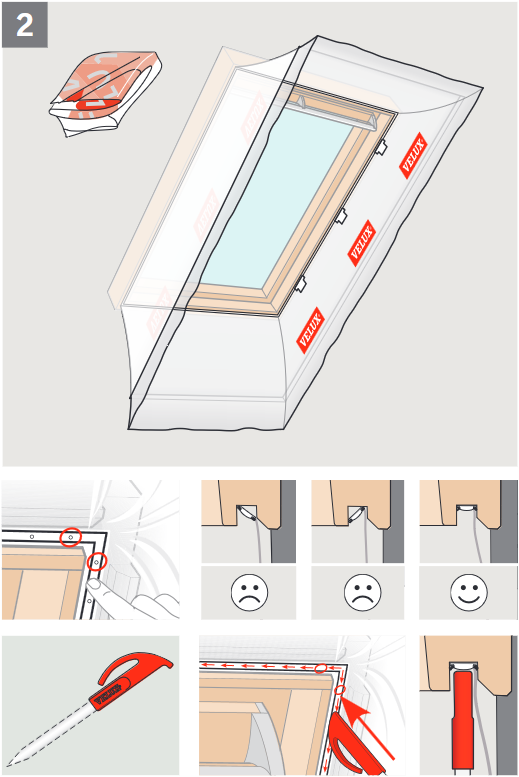

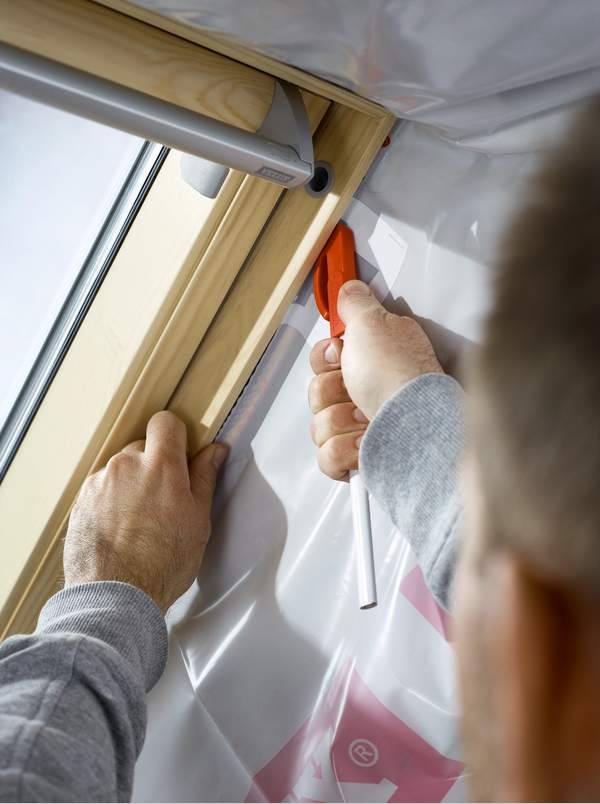

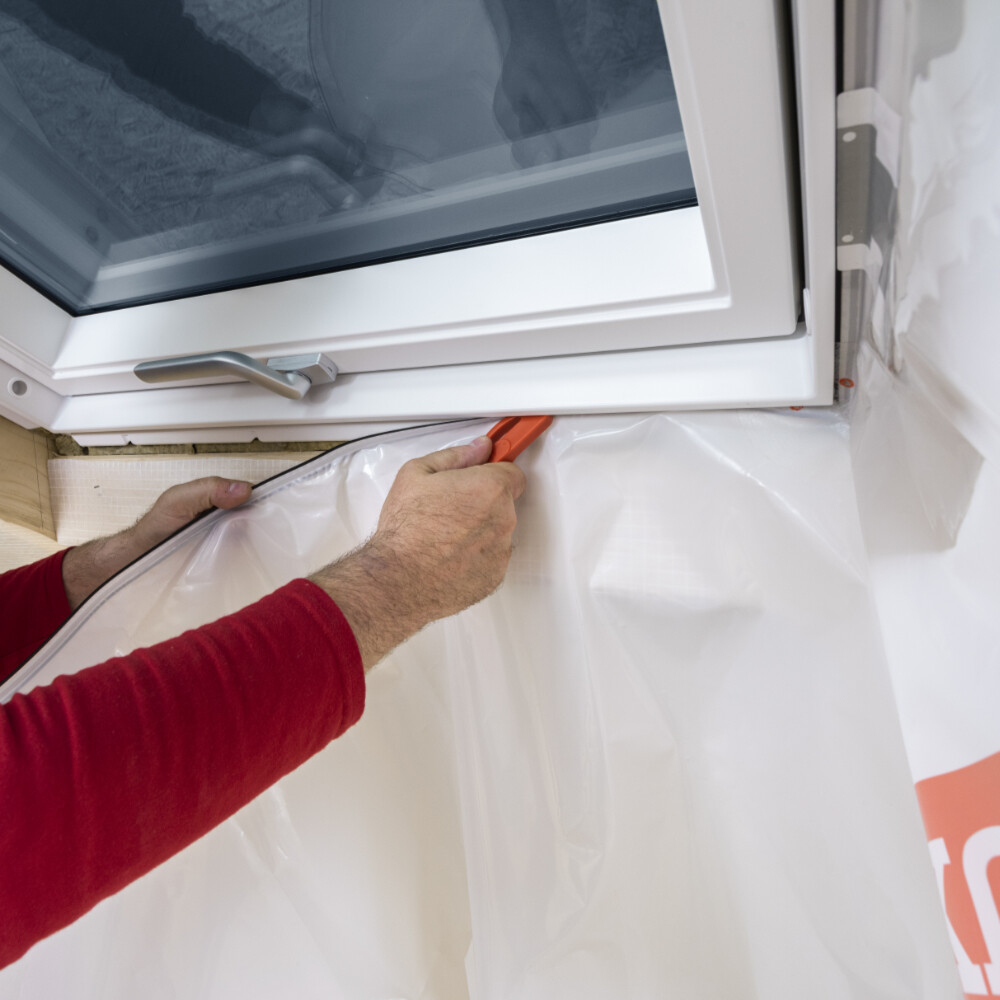

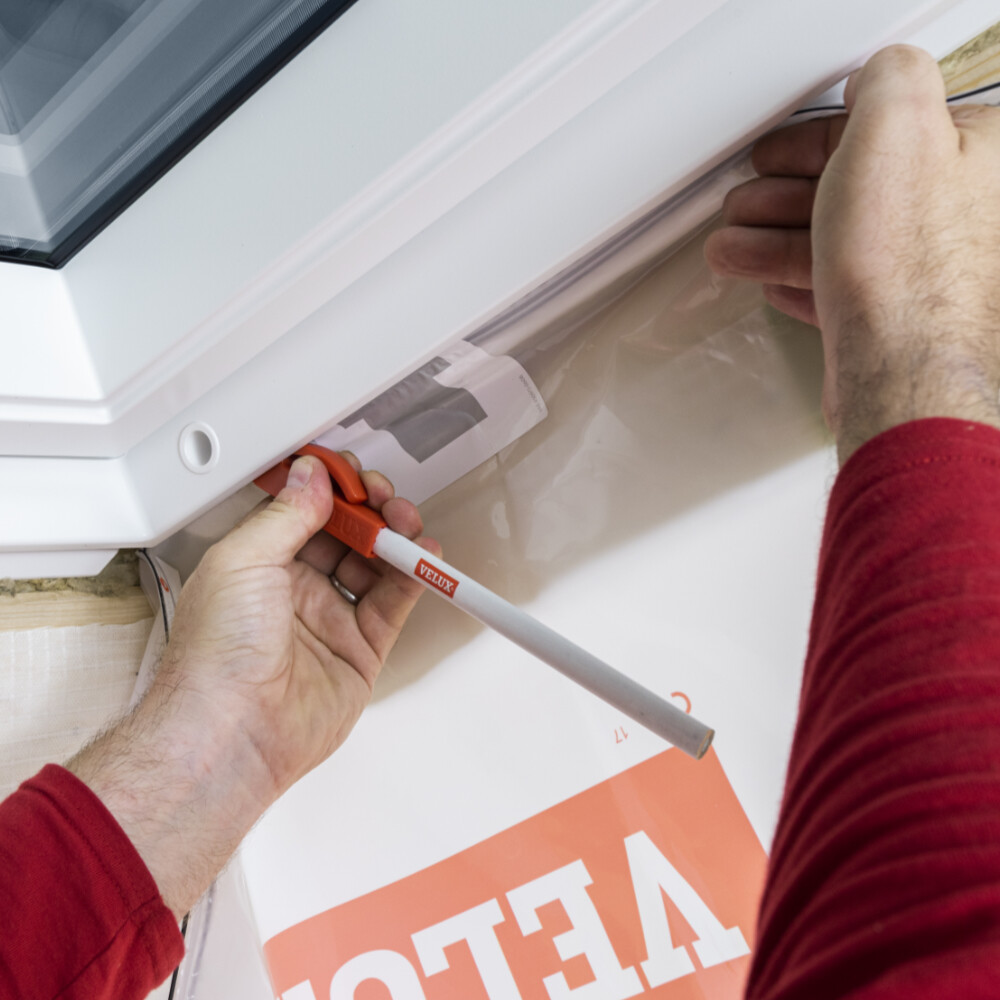

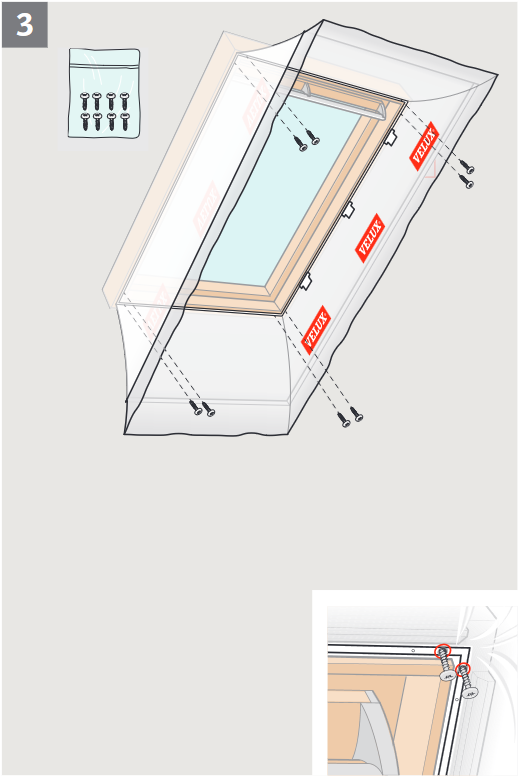

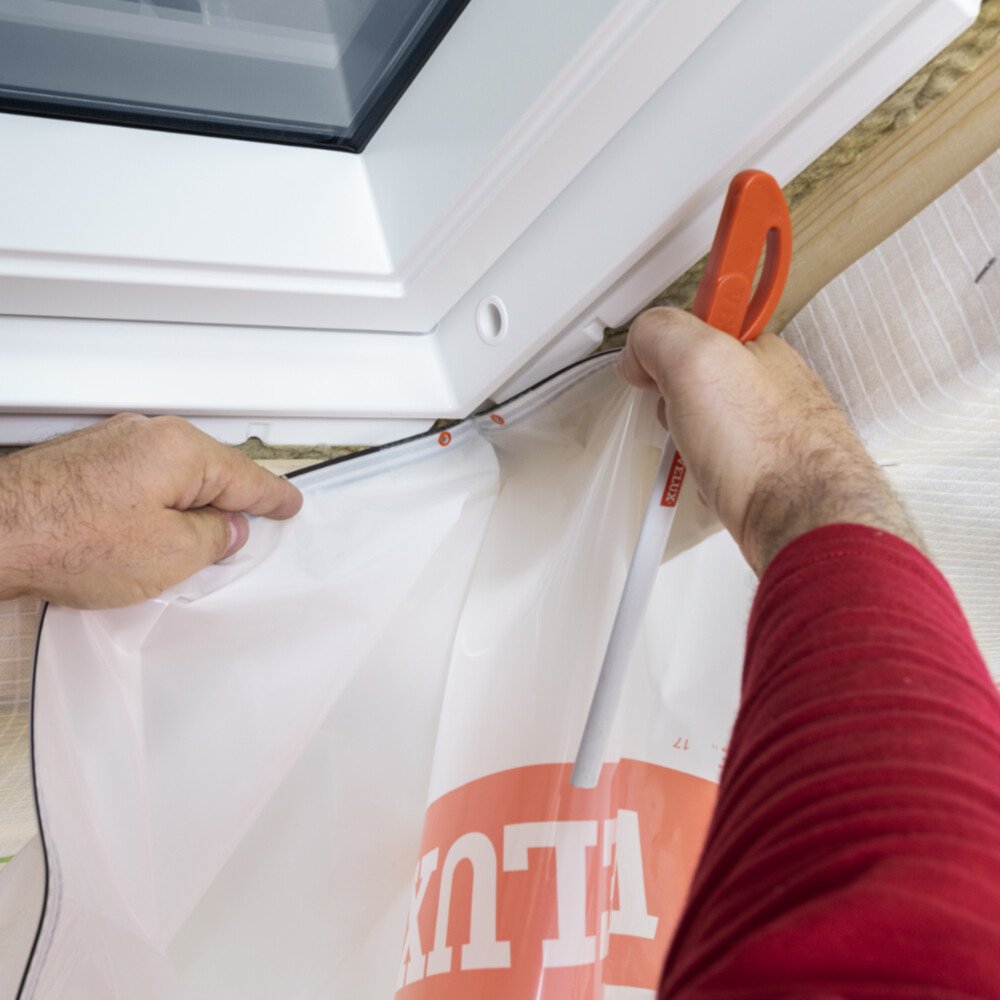

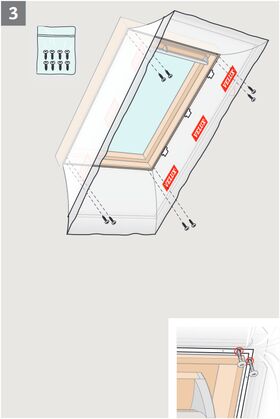

  •  VELUX installation tool helps fit the collar in a matter of minutes.

Permissible angle of the roof slope:
15º - 90º

Suitable for windows:
GGL, GZL, GGU, GHL, GHU, GPL, GPU, GTL, GXL, GIV, GIL and GUI.

VELUX glazing technical data

Glazing (--51) (--61) (--64) (--70) (--68) (--66) (--62) (--62D) (--67) (--69) (--70Q) (--82) (--15)
Thermal transmittance
W/m2K		 1.0 0.6 0.6 1.0 0.7 0.6 0.5 1.0 0.5 0.7 1.0 0.3 0.7
Amount of
chambers		 1 2 2 1 2 2 2 1 2 2 1 4 2
Warm TGI spacer ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Inert gas
filled panes		 Argon Argon Argon Argon Argon Argon Krypton Krypton Krypton Argon Argon Krypton Argon
Toughened
outer pane		 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Laminated opaque
inner pane		 X X X ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Safety class X X X P2A P2A P2A P2A P2A P2A P2A P4A P2A P2A
Ornamental X X X X X X X X X X X X X
Enhanced noise
reductiont		 X X ✓ ✓ X ✓ ✓ X ✓ ✓ X X ✓
Easy-to-clean
coating		 X X ✓ X X ✓ X X ✓ X X ✓ X
Anti-dew effect X X X X X ✓ ✓ X ✓ X X ✓ X
Sound insulation
Rw (dB)		 31 32 35 35 35 37 42 44 38 35 35 37 35
