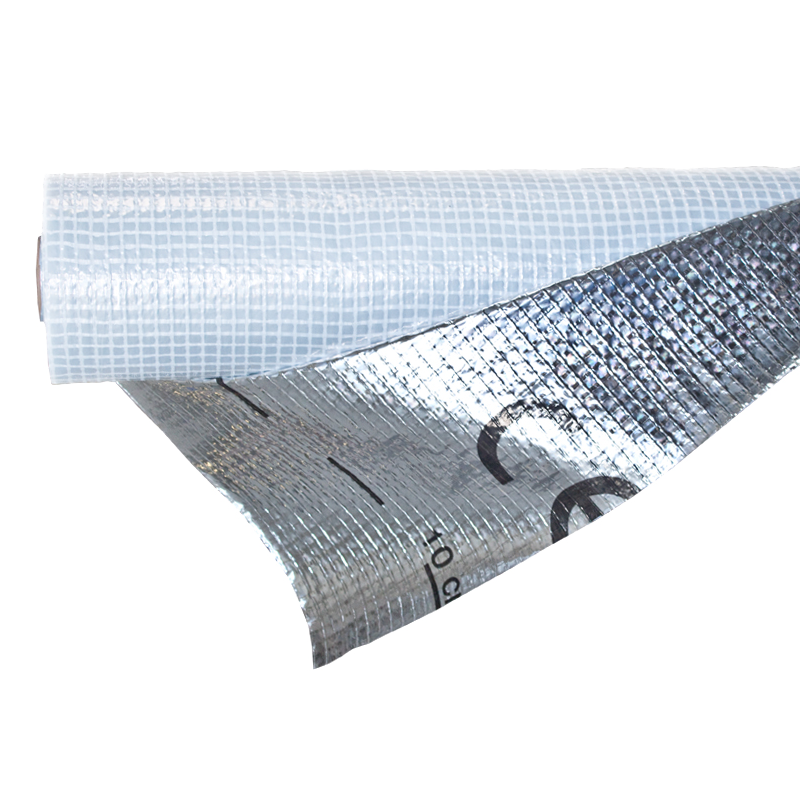

A three-layered, aluminium vapour barrier with a high reflective surface to prevent heat losses indoor. It is used in inhabited atticts as a perfect thermal wall protection from the inside. It effectively stops unwanted water vapour and wind. It can be used in ventilated and nonventilated roofs. It has an additional reinforcement improving durability.
lenght: 50 m; width: 1,5 m
Material: Polyethylene - characterized by a high flexibility which makes underlays durable and easy to install.
m²/palett: 7125 m² / 95 rol.
| Product | Thickness [mm] |
Weight [g/m2] |
Temperature resistance | UV Resistance |
Reaction to fire |
Water vapour diffusion Sd | Tensile strength |
| Vaxo XXL | 0,75 | 160 | from -40°C to +80°C | 7 weeks | Class F | 0,03 m | MD - 285 N/50 mm (± 25) CD - 180 N/50 mm (± 25) |
| Vaxo XL | 0,70 | 140 | from -40°C to +80°C | 6 weeks | Class F | 0,03 m | MD - 260 N/50 mm (± 40) CD - 125 N/50 mm (± 25) |
| Vaxo L | 0,60 | 125 | from -40°C to +80°C | 6 weeks | Class F | 0,03 m | MD - 240 N/50 mm (± 50) CD - 120 N/50 mm (± 30) |
| Vaxo M | 0,50 | 115 | from -40°C to +80°C | 6 weeks | Class F | 0,03 m | MD - 220 N/50 mm (± 45) CD - 110 N/50 mm (± 35) |
| Vaxo S | 0,45 | 100 | from -40°C to +80°C | 6 weeks | Class F | 0,03 m | MD - 185 N/50 mm (± 35) CD - 85 N/50 mm (± 20) |
| Vaxo VB Reflex 90 PLUS |
0,20 | 90 | - | - | Class Ed2 | 100 m | MD - 300 N/50 mm (± 40) CD - 300 N/50 mm (± 40) |
| Vaxo VB Standard |
0,20 | 185 | - | - | Class F | >36 m | MD ≥ 70 N/50 mm CD ≥ 65 N/50 mm |
Dimensions
Width:
1500mm
Length:
50000mm
Roof underlays
Basis weight:
90 g/m²
Thickness:
500 μm
Sd:
20 m
