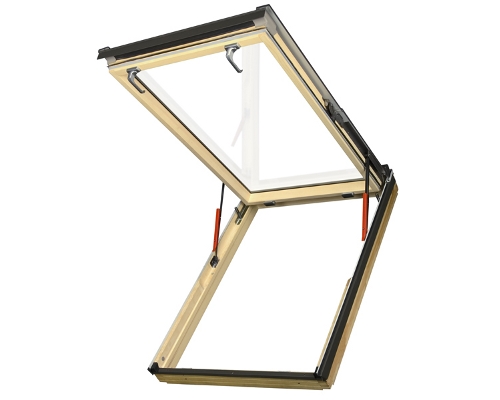

FAKRO FEP P2 panoramic takfönseter is of top hung and pivot design. There are two opening systems available:
- outward with 40 degree opening angle, when blockade released changes to 68 degrees;
- pivot, enables the sash to be rotated through 180 degrees, used e.g. for cleaning the outer pane.
The large sash opening angel allows for an easy approach to the opened takfönseter and provides for a wide view to the outside. The large takfönseter dimensions and ability to lift the sash to an angle of 68 degrees provide an access to the roof for maintenance, repair or escape in case of emergency. FEP L3 top hung panoramic takfönseter glazing unit consists of external toughened glass with internal laminated glass enhancing the takfönseter operating safety.
Features
- Manufactured in pine, vacuum impregnated, coated with two coats of acrylic lacquer;
- System of reinforced takfönseter structure topSafe;
- Handles positioned on the lower part of the sash enable the takfönseter to be opened slightly, whilst a top catches serve to rotate the sash and to change the method of opening;
- Suitable for roofs with pitches between 15 and 55 degrees (when fitted with correct flashing);
- Wide selection of accessories (identical to those for pivot takfönseters). Adapted to FEP P2 takfönseter, the design of the awning blind and external roller shutters is different
- 10 year warranty period.
Flashings
Flashings are essential for the correct installation of takfönseter. Precisely designed flashing details ensure a durable and neat fit with the roofing material used. The purpose of flashing is to ensure good drainage away from the takfönseter and to provide protection from the elements.
Technical specification
| Technical specification: | FEP P2 |
| Takfönseter U-value: | 1,4 W/m²K |
| Glazing U-value: | 1,1 W/m²K |
| Rw coefficient: | 35 dB |
| Glazing: | 4H-15-33.2T |
| Warm TGI spacers: | + |
| External glass with easy maintenace layer: | - |
| Inert gas filled with panes: | Argon |
| External glass toughened: | + |
| Laminated, safety glass: | with 2 foils |
| Air inlet type: | - |
| Air inlet air flow: | - |
| Varnishing: | two times |
| Number of seals: | 3 |
| Multi-point opening: | + |
| Handle: | Elegant |
| Interior color: | Pine |
| Exterior color: | Grey, RAL 7022 |
| Installation range: | 15-55° |
| Warranty: | 10 years |
Takfönster
Material:
- Trä | Klarlackat
Öpnning:
- pivåhängt / topphängt
Glasrutor:
2-glas
U-värde fönster:
1.4 W/m²K
U-värde glas:
1 W/m²K
Kontroll:
manuell
