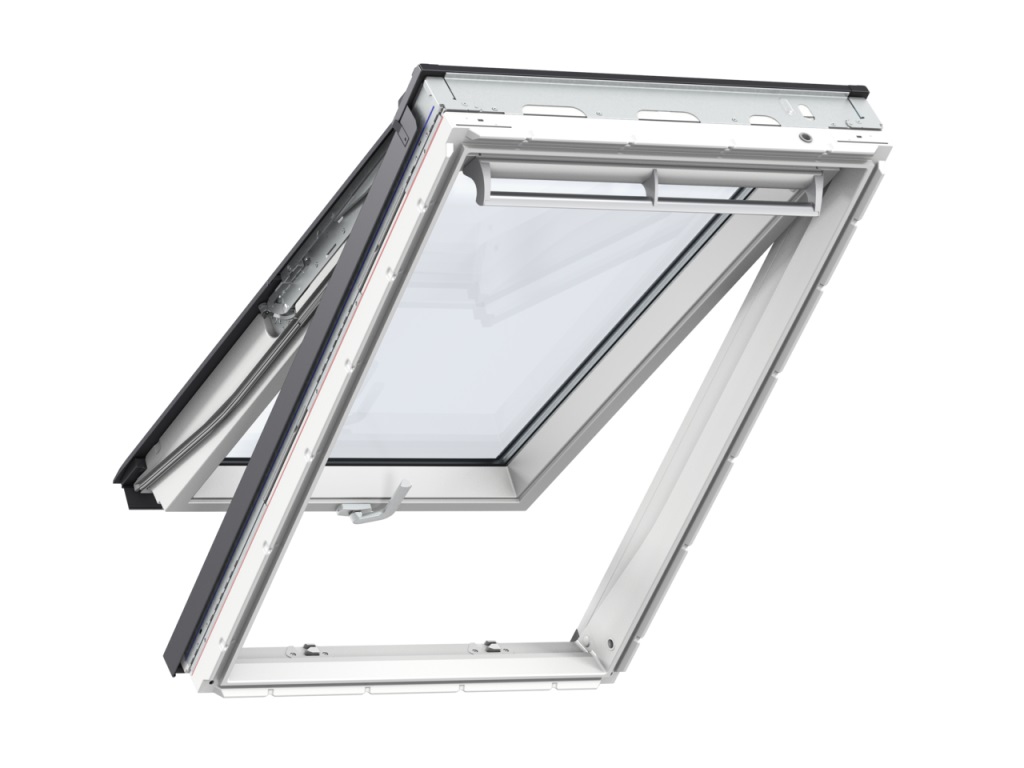

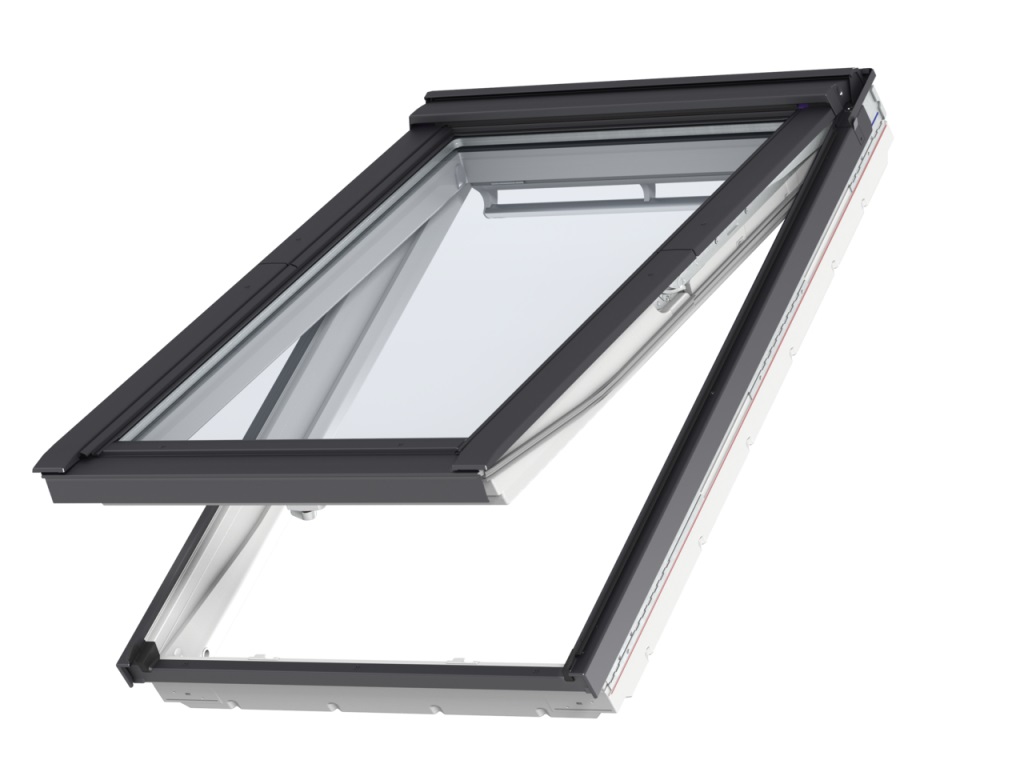

VELUX GPU 0062 | everfinish, top hung roof window with safe 3-glazing

Original VELUX GPU is a manual, top-hung and pivot wooden roof window with white finish. It's tripple glazing provides P2A safety class, anit dew cover and noise reduction.

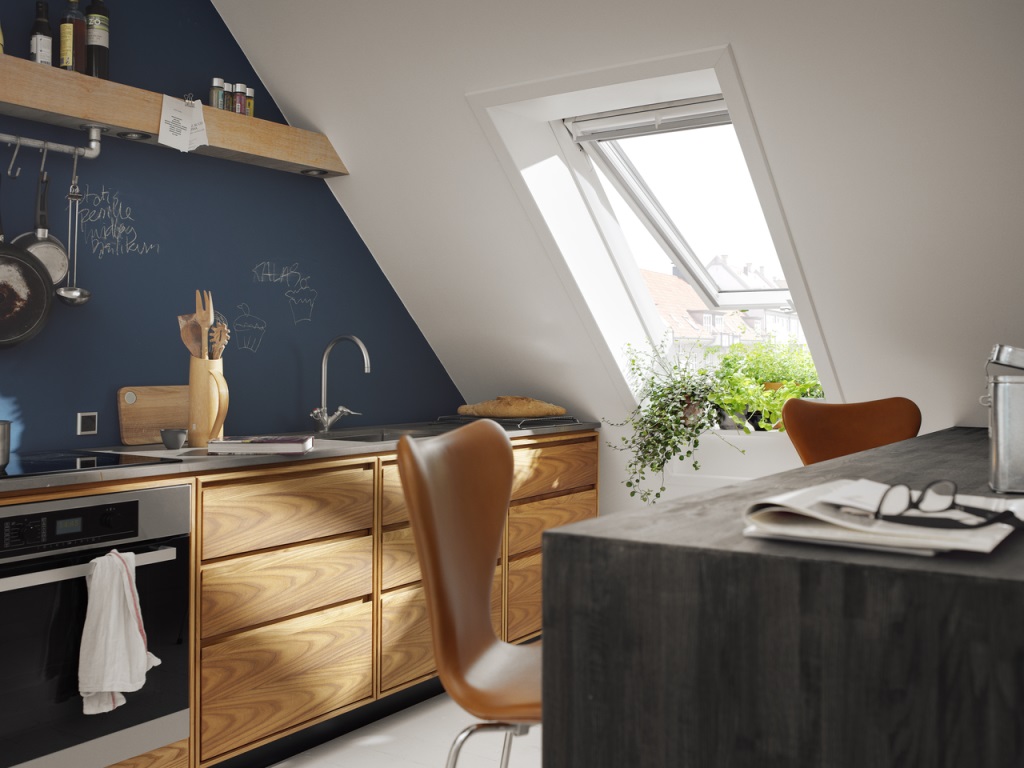

Top-Hung GPU roof windows come with a timber core with moulded white polyurethane finish, making them ideal for humid rooms such as kitchens and bathrooms. Opening to any position up to 45º, they are ideal at creating extra headroom, a feeling of increased space, and panoramic views.

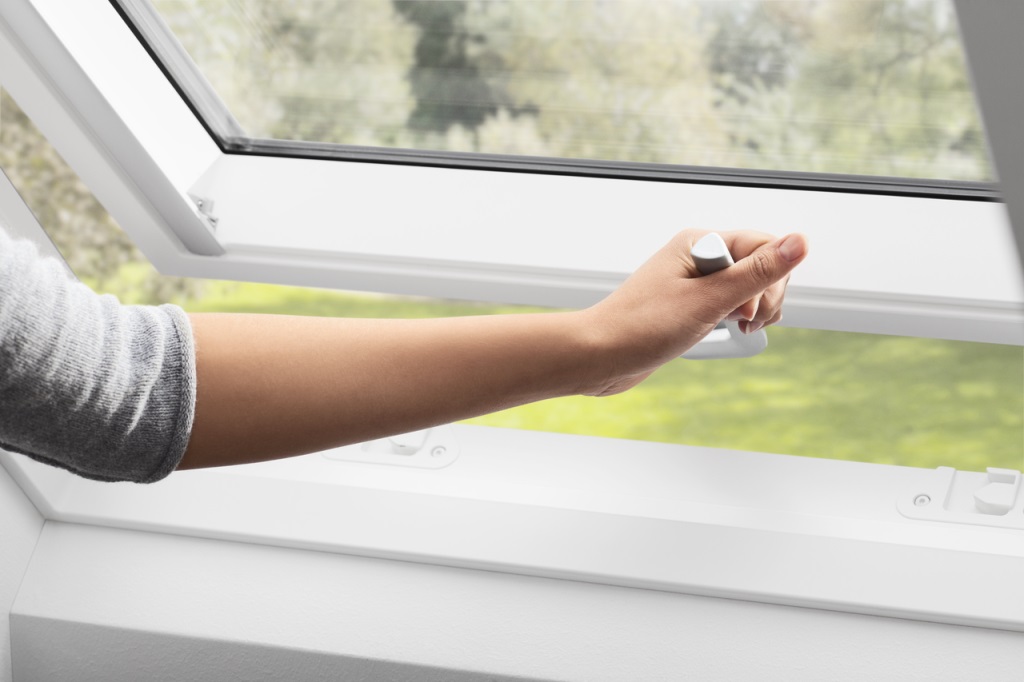

Original GPU everfinish VELUX roof window with the unique top control bar for easy operation. The improved design allows to open and close the window with one hand. The top control bar makes it very easy to open and close the window even with furniture placed directly below. Elegant bottom handle ensures operating, when windows is high installed.

GPU window is equipped with integrated ventilation flap. The unique, integrated VELUX ventilation flap lets in fresh air through a dust and insect filter even when the window is closed. Good for rainy days, and ensure a healthy indoor environment.

The New Generation GPU roof window incorporates new, innovative insulation system ThermoTechnology™ and additional seal to offer superior energy efficiency through improved insulating values.

Features

• High-quality polyurethane finish. Matches perfectly to modern interiors;
• Double chamber glazing with a toughened outer pane for strength and laminated interior pane for safety | P2A safety class and noise reduction.
• Comfortable top control bar for easy operation + elegant bottom handle;
• Opening to any position up to 45^o;
• The window rotates 180° in its frame for easy and safe cleaning;
• Waterproof and maintenance-free;
• The unique, integrated ventilation | air flow even when window is closed;
• Dust and insect filter;
• Thermo Technology | transfers less energy and keeps your home warm;
• Additional seal;
• High quality pivot hinges for smooth operation
• Suitable for roofs with pitches between 15 and 90 degrees (when fitted with correct flashing);
• Wide range of accessories;
• Straightforward blind installation with patented mounting brackets
• 10 years warranty period.

Glazing unit (--62)

Triple glazed, laminated inner pane, toughened outer pane with Easy-to-clean & Anti-dew coating. Provides enhanced U-value and Noise Reduction. The glazing cavity is filled with inert gas krypton. The laminated unit is positioned from the room side of the glazing and is coated with low emision layer. In case of laminated glass damage or shattering, pieces of glass will stick to the membrane. Laminated glass reduces penetration of UV rays by up to 95%.

Flashings

VELUX flashing: do I really need it?

Flashings are essential for the correct installation of roof windows. Precisely designed flashing details ensure a durable and neat fit with the roofing material used. The purpose of flashing is to ensure good drainage away from the window and to provide protection from the elements.
VELUX offers a range of flashings designed for different roofing materials and provide two options for installation height (standard and recessed).

VELUX flashing: standard or recessed installation?

Recessed installations offer a more sleek, streamlined appearance, sitting 40mm deeper in the roof structure. Recessed installations also offer greater energy efficiency, and when installed with the appropriate VELUX insulation collar actually offer a lower certified u-value, saving energy and providing architects with greater design flexibility.

EDZ 1000	EDW 0000	EDT 1000	EDJ 1000	EDN 1000	EDL 1000	EDS 1000	EDB 1000
Underfelt collar BBX
Included	-	Included	Included	Included	Included	Included	Included
Installation
Standard	Standard	Standard	Deeper	Deeper	Standard	Standard	Standard
Purpose (type of roofing material):
profiled from 1.5 to 4.5 cm height	profiled from 1.5 to 12 cm height	flat & thick tiles from 1.5 to 4 cm height	profiled from 1.5 to 9 cm height	slate, flat roofing materials up to 1.6 cm high (2 x 0.8 cm)	slate, flat roofing materials up to 1.6 cm high (2 x 0.8 cm) side parts as layered pieces without standing seams	bituminous shingles, flat roofing materials up to 1.6 cm high (2 x 0.8 cm) side parts continuous with standing seams	slate, flat roofing materials up to 3.8 cm high (2 x 1.9 cm)
Fitting for roofing material:
Interlocking panel, flat roof tile, flat cremone, reform panel, Frankfurt panel, Taunus panel, flat tile, Heidelberg panel, plain tile in crown covering	Monastery tile, monastery tile, monk and nun, Florento tile, Mistral tile, Toledo tile as well as thatch, straw, corrugated sheets 5-, 6-, 8-flute, Berlin wave	Koramic Wienerberger Orea 9, Monier Braas Turmalin, Braas Teviva, Braas Reviva, Creaton Domino, Nelskamp Nibra, Wienerberger Koramic Acuta, Erlus Linea and many others.	Interlocking tiles, flat roofing tiles, flat clay tiles, reform panels, Frankfurt panels, flat tiles, Heidelberg panels, corrugated sheets 5-, 6-, 8-wave, Berlin wave, plain tiles in crown and double roofing	Slate (e.g., rectangular double roofing template), wood shingles, roofing felt, roofing sheets, bituminous shingles, bituminous sheets		Slate (e.g. German and old German roofing), wooden shingles, roof panels	Double roofing plain tile
Installation type and installation range:
Standard, suitable for 20°-90° roof pitches	Standard, suitable for 15°-90° roof pitches	Standard, suitable for 20°-90° roof pitches	Recessed, suitable for 20°-90° roof pitches	Recessed, suitable for 20°-90° roof pitches	Standard, suitable for 15°-90° roof pitches	Standard, suitable for 15°-90° roof pitches	Standard, suitable for 25°-90° roof pitches
Additional insulation products (sold separately):
Insulation frame VELUX BDX 2000 for standard flashings, and vapour barrier collar VELUX BBX			Insulation frame VELUX BDX 2000F for recessed flashings, and vapour barrier collar VELUX BBX		Insulation frame VELUX BDX 2000 for standard flashings, and vapour barrier collar VELUX BBX
