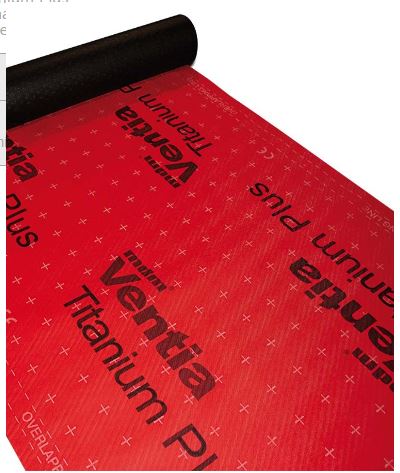

A high class diffusive roof membrane from Ventia line, weight of about 190 g/m2 and thickness of 750 μm, three-layered, above average resistance, high water vapour permeability (Sd=0,02 m). It can be used on roofs with full boarding.
Material - polypropylene nonwovens laminated with microporous polypropylene film.
Use with full boardnig - yes
UV resistance - 3 months (concerns average yearly radiation in the Central European climat).
lenght: 50 m
width: 1,5 m
Palett dimensions: 1540x1170x1300 mm
palett: 2025 m²/27 rol.
| Product | Thickness [mm] | Weight [g/m2] | Temperature resistance | UV Resistance | Reaction to fire | Water vapour diffusion Sd | Tensile strength |
| Ventia Q | 0,90 | 230 | from -40°C to +80°C | 6 months | Class E-d2 | 0,04 m | MD - 380 N/50 mm (± 50) CD - 260 N/50 mm (± 35) |
| Ventia Titanium Plus | 0,85 | 185 | from -40°C to +80°C | 3 months | Class E-d2 | 0,02 m | MD - 430 N/50 mm (± 60) CD - 260 N/50 mm (± 35) |
| Ventia Titanium | 0,85 | 180 | from -40°C to +80°C | 3 months | Class E-d2 | 0,02 m | MD - 420 N/50 mm (± 70) CD - 250 N/50 mm (± 35) |
| Ventia Cobalt Plus | 0,80 | 170 | from -40°C to +80°C | 3 months | Class E-d2 | 0,04 m | MD - 370 N/50 mm (± 50) CD - 230 N/50 mm (± 25) |
| Ventia Gold | 0,70 | 150 | from -40°C to +80°C | 3 months | Class E | 0,02 m | MD - 350 N/50 mm (± 50) CD - 210 N/50 mm (-10+40) |
| Ventia Bronze | 0,60 | 130 | from -40°C to +80°C | 3 months | Class E-d2 | 0,02 m | MD - 280 N/50 mm (± 40) CD - 190 N/50 mm (± 35) |
| Ventia Iron | 0,55 | 120 | from -40°C to +80°C | 3 months | Class E-d2 | 0,02 m | MD - 245 N/50 mm (± 45) CD - 140 N/50 mm (± 25) |
| Ventia Metal | 8 + 0,70 | 400 | from -30°C to +80°C | 3 months | Class F | 0,02 m | MD - 400 N/50 mm (± 60) CD - 210 N/50 mm (± 30) |
| Verso Top | 0,45 | 85 | - | - | Class F | 4,50 m | MD - 150 N/50 mm (± 30) CD - 110 N/50 mm (± 50) |
| Verso Reflex Plus | 0,40 | 77 | - | - | Class F | 6 m | MD - 130 N/50 mm (± 25) CD - 90 N/50 mm (± 20) |
Dimensions
Width:
1500mm
Length:
50000mm
Roof underlays
Basis weight:
190 g/m²
Thickness:
750 μm
Sd:
0.02 m
