Roof membrane VAXO (100, 115, 140, 160, 180 g/m²)

10,92 kr / m² inc. VAT, excl. shipping
(8,74 kr excl. VAT and shipping)
Before choosing, please read the technical data table in the description.
MDM-15100

Ships within: Please ask about delivery time

+

Minimum quantity for "Roof membrane VAXO (100, 115, 140, 160, 180 g/m²)" is 75.

Add to wish list

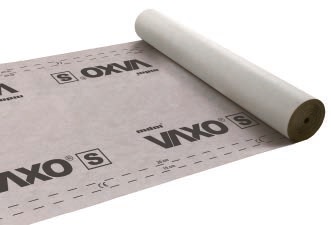

VAXO roof membranes

VAXO membranes are a perfect solution for building a house. Thanks to its high vapor permeability (Sd = 0.03 m) they can be used directly on the thermal insulation layer - without the need for a ventilation gap.

✓ three-layered
✓ open for diffusion
✓ polypropylene nonwovens combined with microporous polypropylene film

Roofing membranes (roofing foils) are a modern, commonly used material, replacing roofing felt laid for roofing purposes. Membranes are easier to arrange, cheaper and lighter, and thanks to their properties, they effectively protect the attic and the thermal insulation layer against moisture, wind and dust, as well as against leaks that occur as a result of damage of the roofing. They can also be successfully used as house wraps.

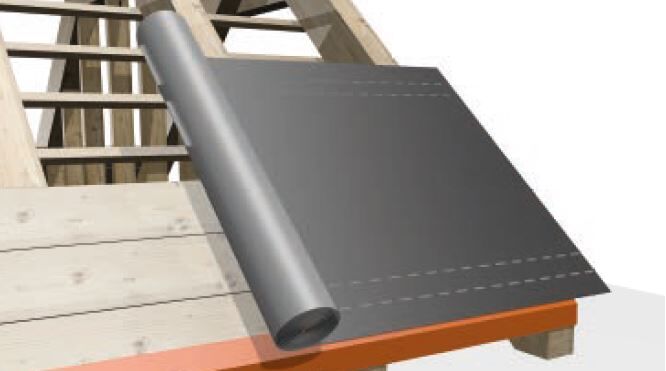

VAXO 3XL and VAXO XXL roof membranes can be laid directly on roofs with full boarding.

VAXO roof membranes: comparison of basic technical parameters

Product: VAXO S VAXO M VAXO L VAXO XL VAXO XXL VAXO 3XL
Mass per unit area: 100 g/m2 115 g/m2 140 g/m2 140 g/m2 160 g/m2 180 g/m2
Thickness: 0,45 mm 0,50 mm 0,60 mm 0,70 mm 0,75 mm 0,75 mm
Vapor permeability: Sd = 0.03 m
Resistance to water penetration: Class W1 (no water penetration) according to EN 1928
Reaction to fire: Class F (product is not documented)
Maximum tensile force: MD-185N/50mm
CD-110N/50mm
MD-220N/50mm
CD-140N/50mm
MD-240N/50mm
CD-150N/50mm
MD-265N/50mm
CD-180N/50mm
MD-320N/50mm
CD-210N/50mm
MD-350N/50mm
CD-240N/50mm
Resistance to tearing: MD-90 N
CD-125 N
MD-130 N
CD-170 N
MD-140 N
CD-180 N
MD-165 N
CD-225 N
MD-190 N
CD-255 N
MD-230 N
CD-290 N
Temperature resistance: from -40°C to +80°C
UV resistance: 6 weeks 7 weeks
refers to the average annual irradiation in the Central European climate

Dimensions

Width:
1500mm
Length:
50000mm

Roof underlays

Sd:
0.03 m

VELUX glazing technical data

Glazing (--51) (--61) (--64) (--70) (--68) (--66) (--62) (--62D) (--67) (--69) (--70Q) (--82) (--15)
Thermal transmittance
W/m2K
1.0 0.6 0.6 1.0 0.7 0.6 0.5 1.0 0.5 0.7 1.0 0.3 0.7
Amount of
chambers
1 2 2 1 2 2 2 1 2 2 1 4 2
Warm TGI spacer
Inert gas
filled panes
Argon Argon Argon Argon Argon Argon Krypton Krypton Krypton Argon Argon Krypton Argon
Toughened
outer pane
Laminated opaque
inner pane
X X X
Safety class X X X P2A P2A P2A P2A P2A P2A P2A P4A P2A P2A
Ornamental X X X X X X X X X X X X X
Enhanced noise
reductiont
X X X X X X
Easy-to-clean
coating
X X X X X X X X X
Anti-dew effect X X X X X X X X X
Sound insulation
Rw (dB)
31 32 35 35 35 37 42 44 38 35 35 37 35
