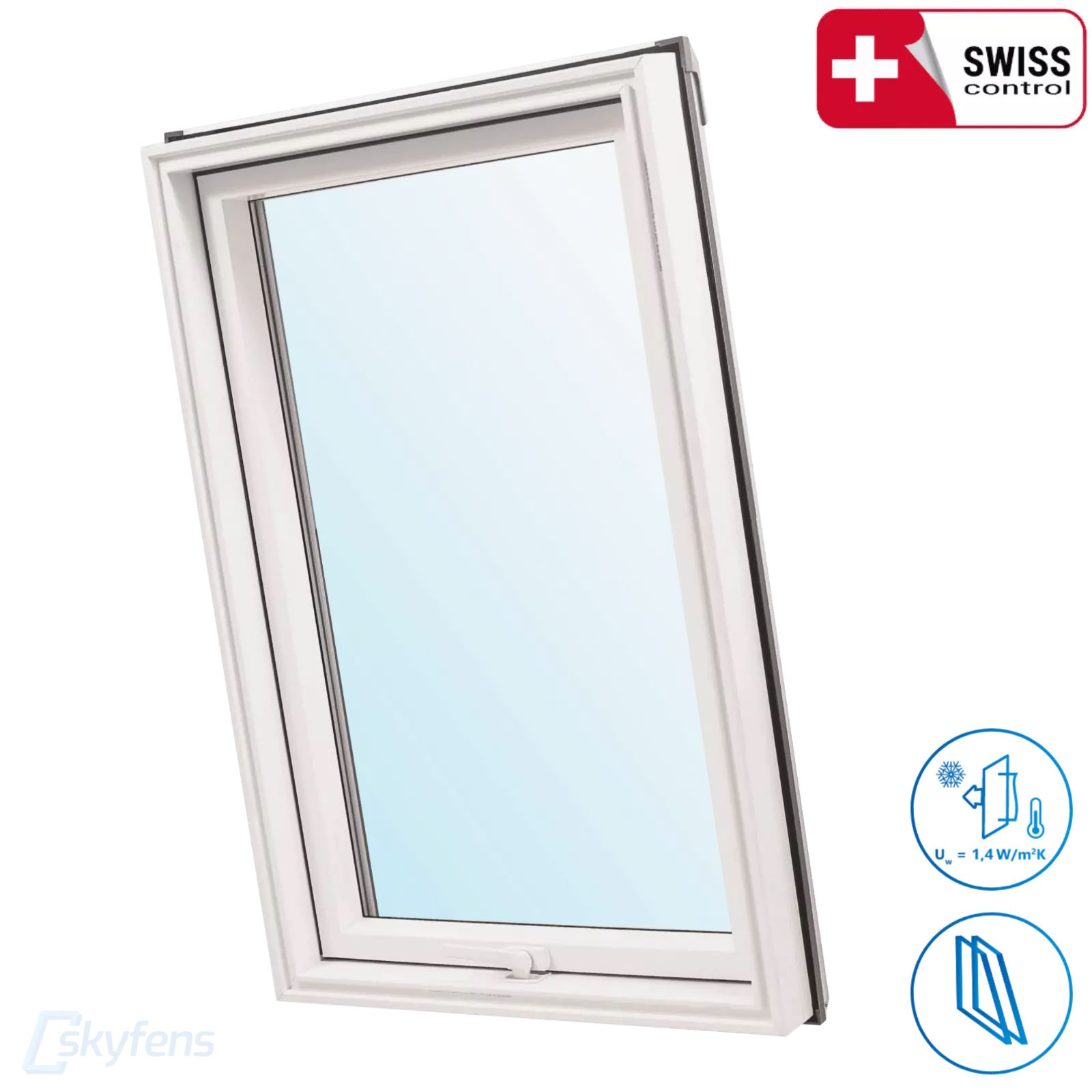

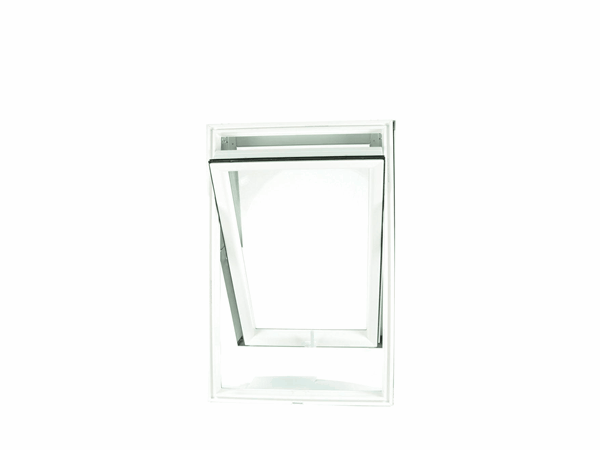

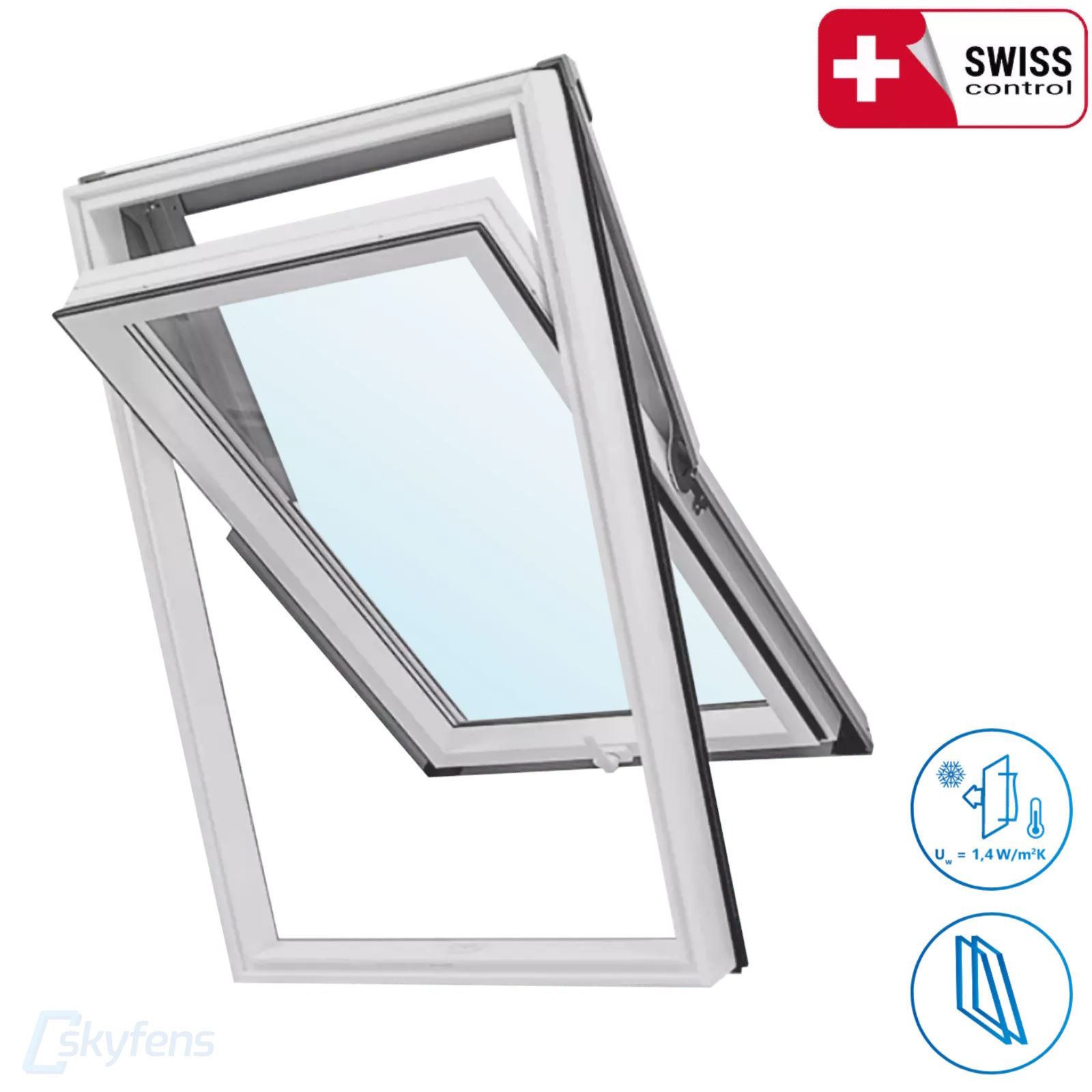

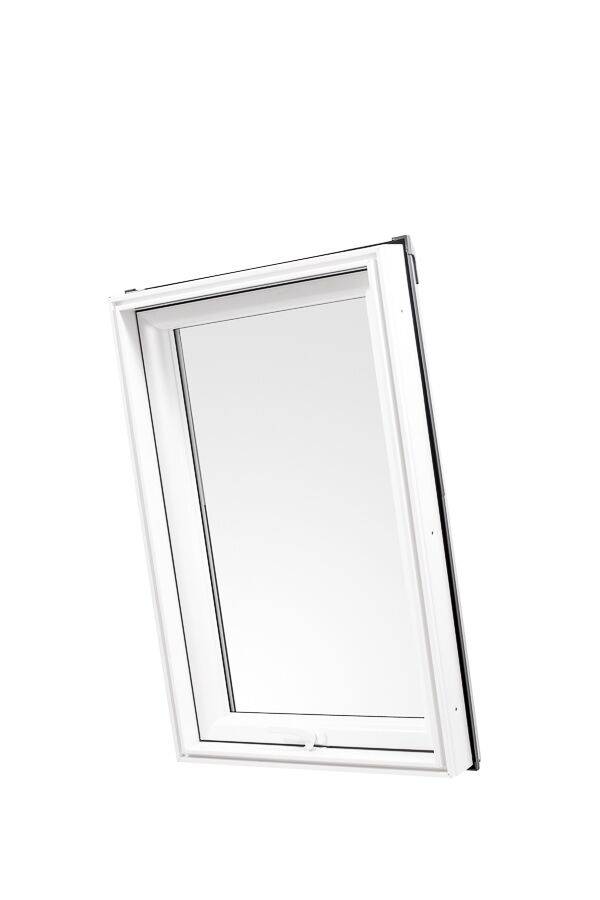

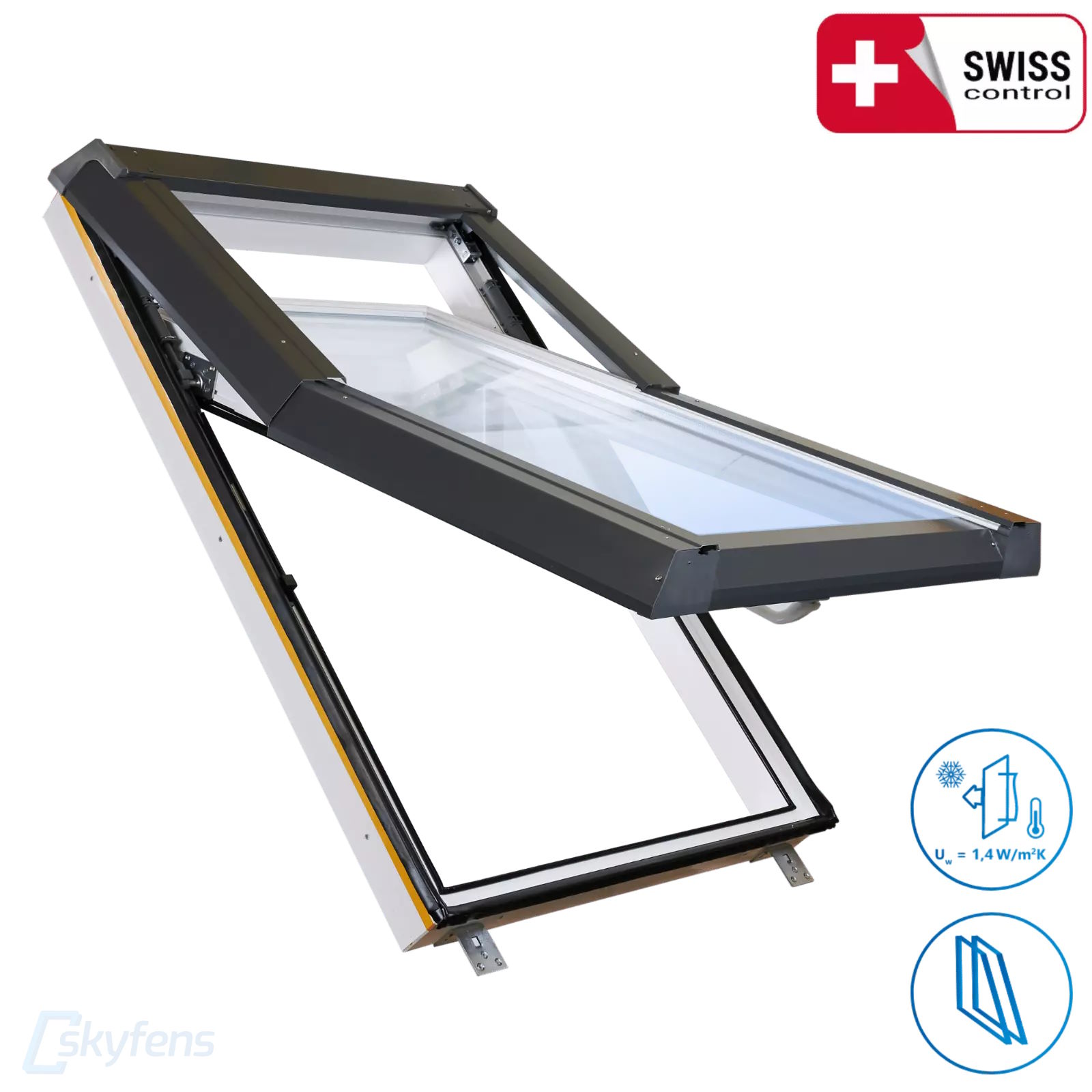

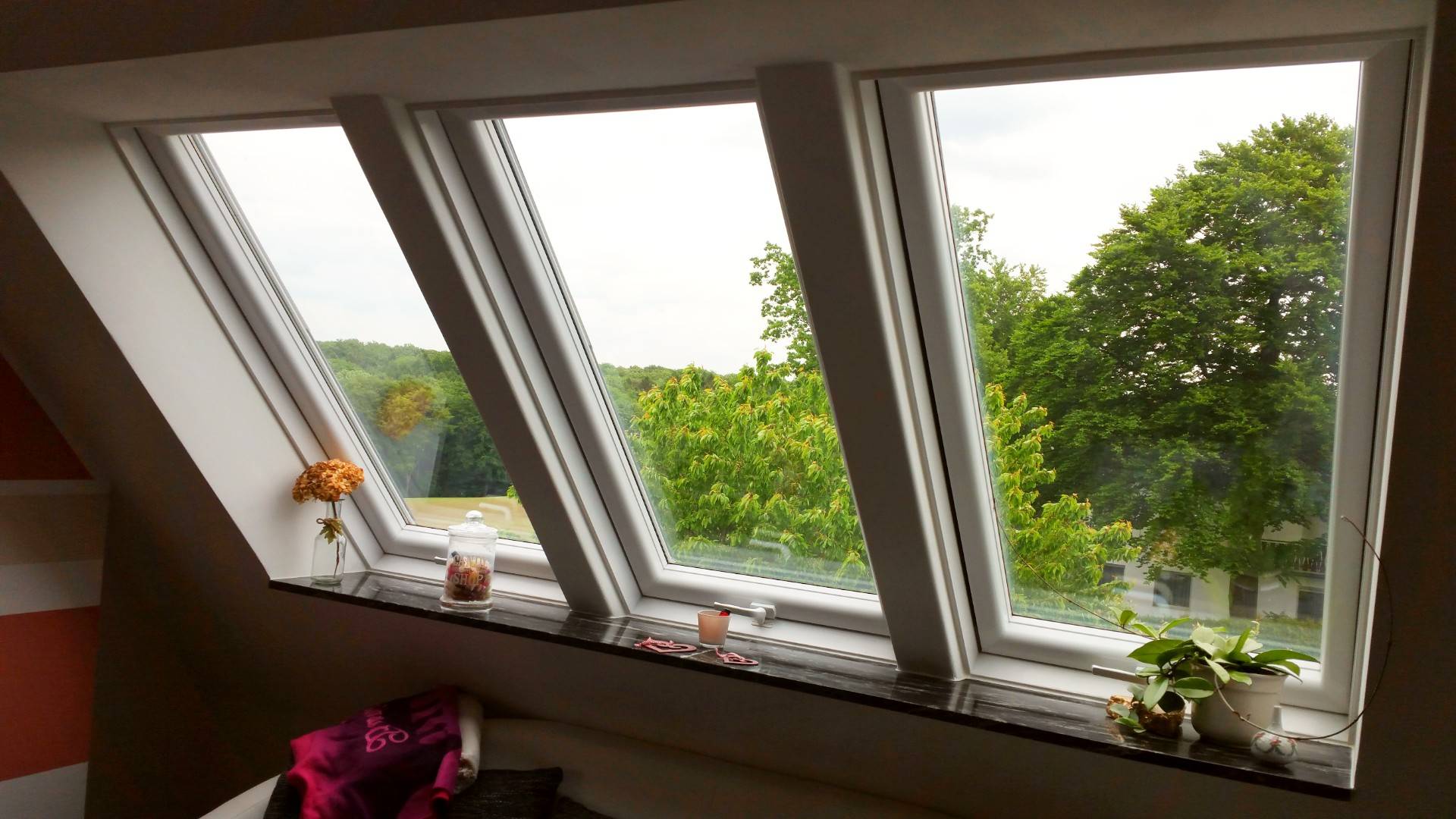

SKYLIGHT | PVC, high pivot, 2-glass roof window

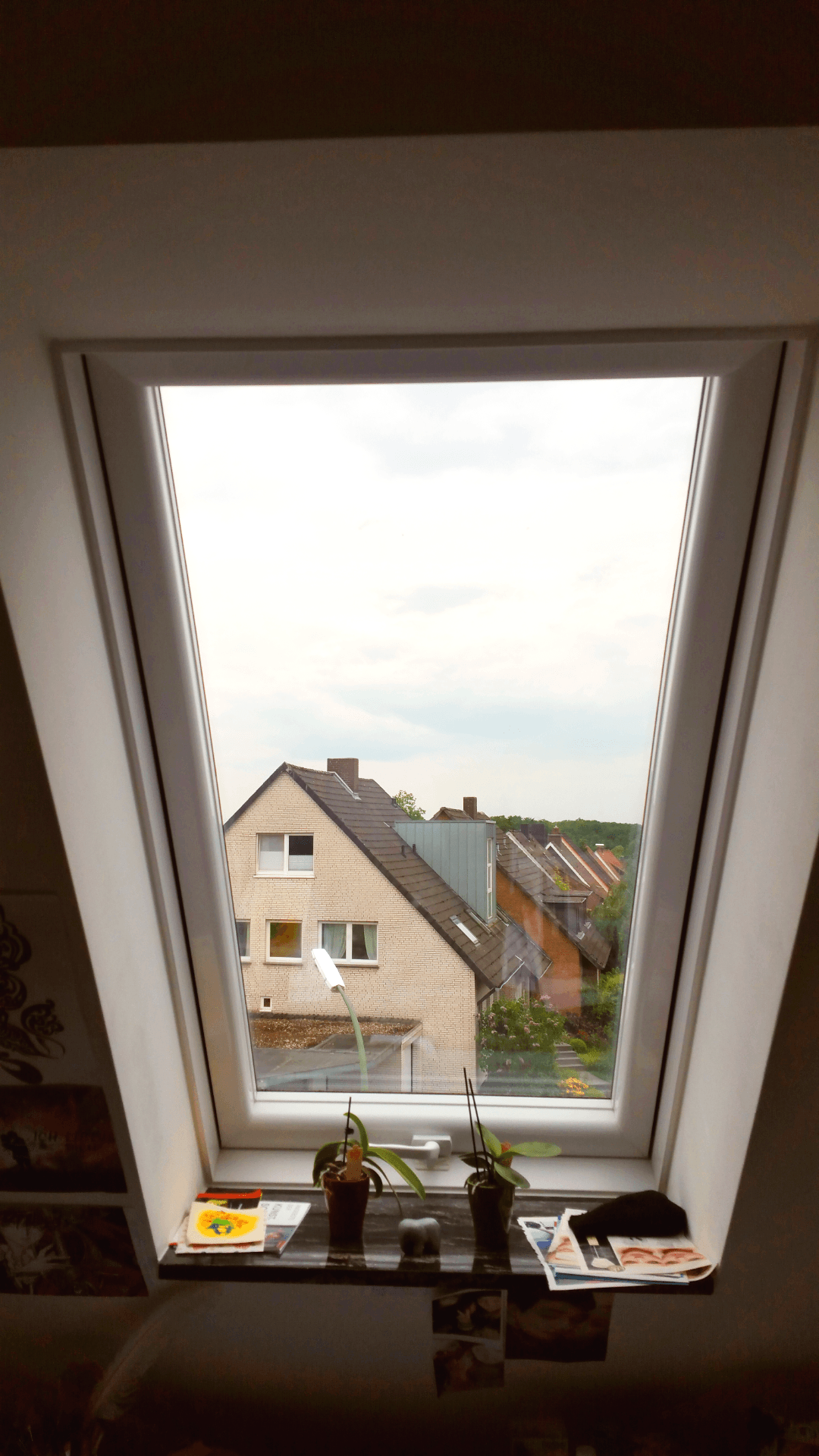

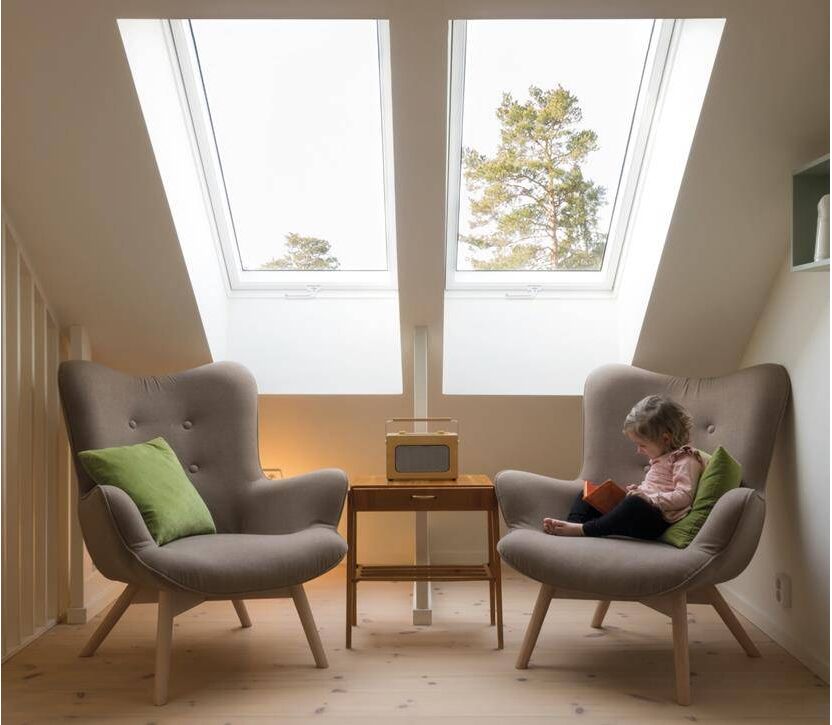

Roof window for the bathroom. And to any other room in the attic.

Roof windows SkyLight can be installed in all conditions also the rooms with higher humidity. They require very little maintenance in comparison to wooden windows. They are characterized by good thermal and acoustic insulation, tightness and safety of use and installation.

Benefits

• execution of resistant to dirt and the aging of PCV additionally strenghtened galvanized steel in order to improve the static window and facilitate the mounting of the fitting,
• a cover is metallurgical coated with polyester varnish,
• handle in the lower wing element in enabling the open position ventilation,
• assembly on the roof with an inclination of 15 ° for up to 75°,
• able to adjust the wing position in the frame,
• the full opening of the wing locked by brake ,
• windows thermal permeability Uw =1,4 [W/m2K].

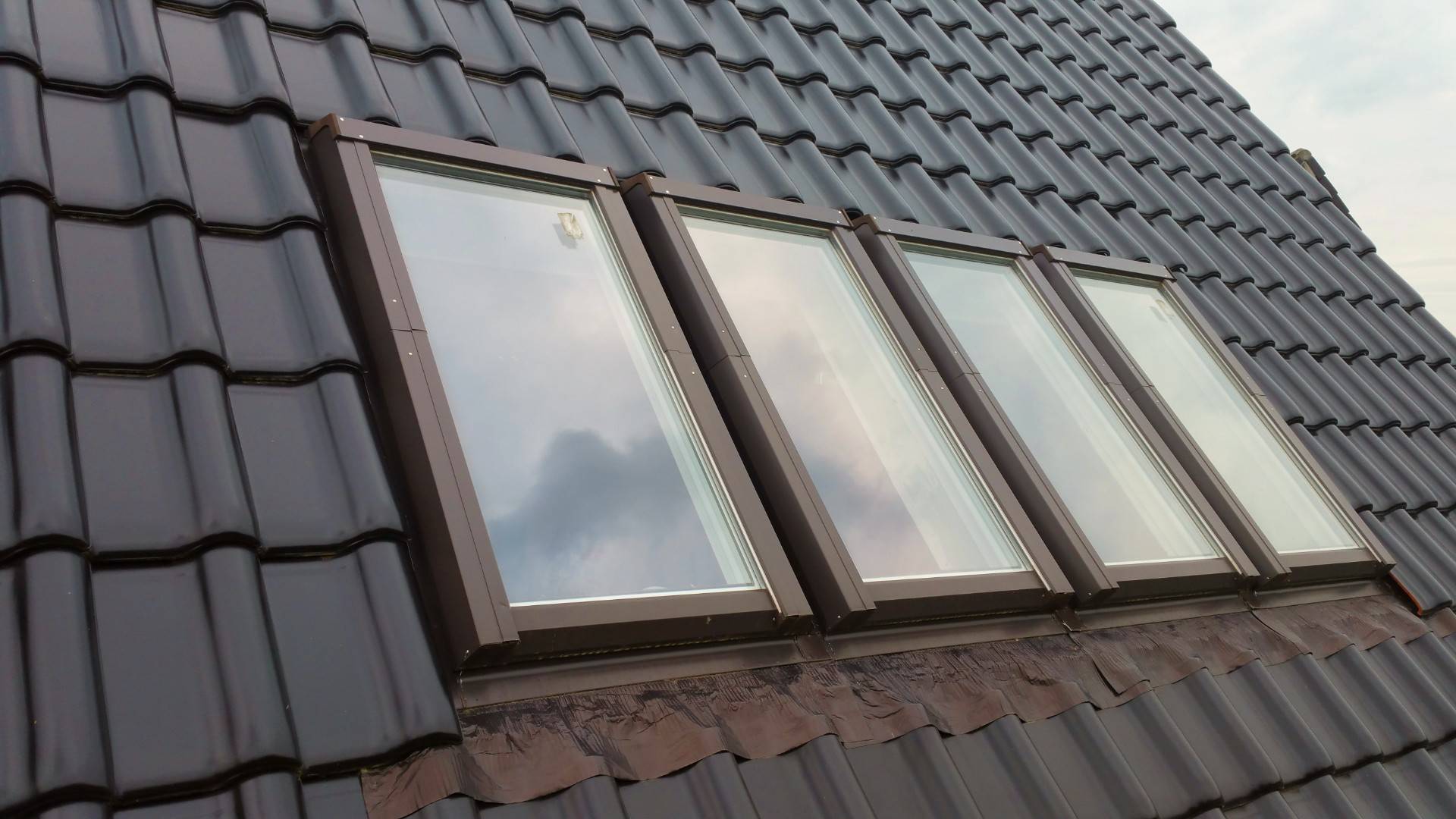

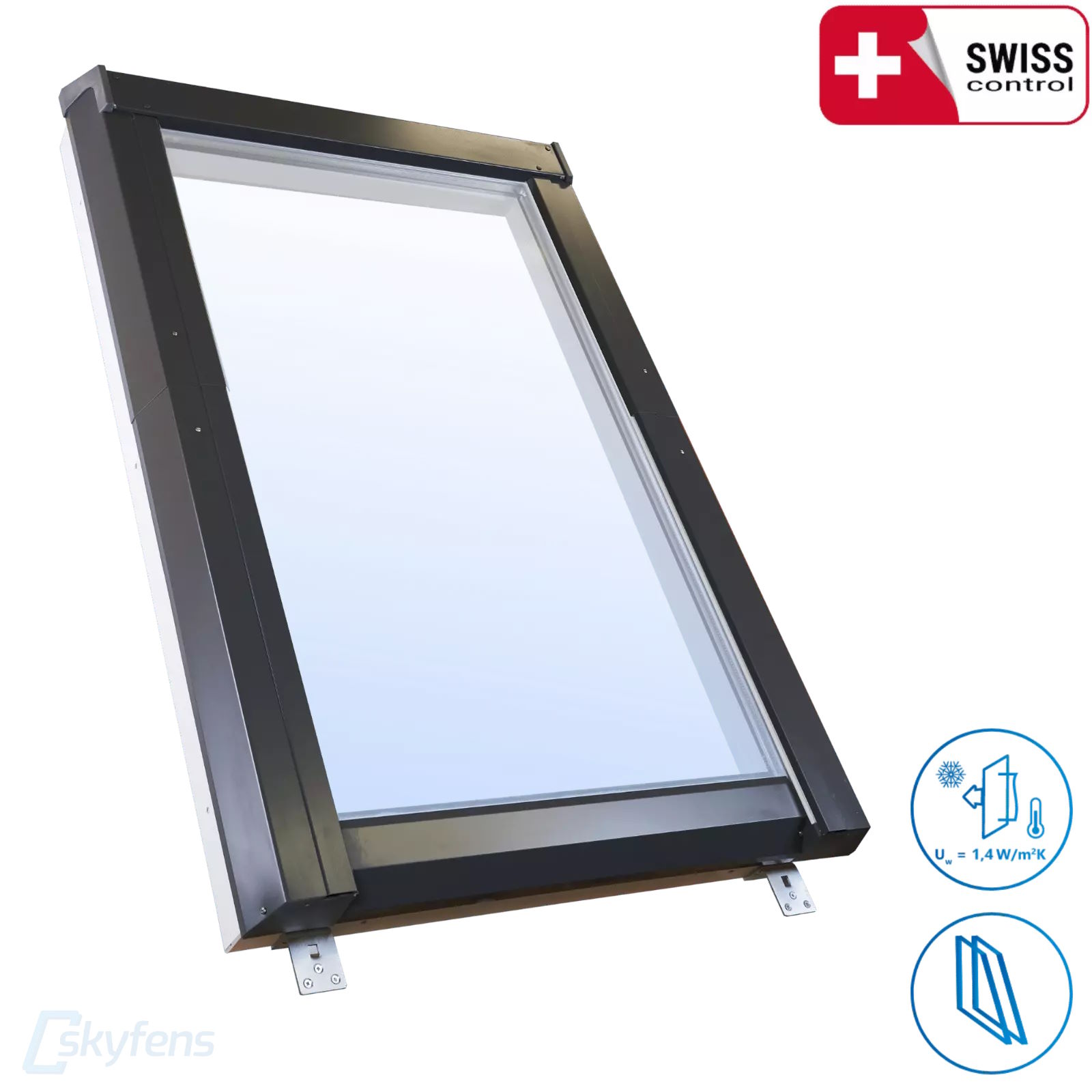

Flashing

A flashing is an essential element allowing correct installation of a roof window in the roof slope. The precisely designed systemic elements of the flashing enable tight and durable integration of the window with roofing. It is very important as the main task of the flashing is to drain water and snow away from the window and protect it against the wind. The flashings are manufacture from aluminium sheet, coated with hard-wearing polyester lacquer. The basic color is umbra Grey (RAL 7022), thanks to which windows go well with standard colors of roofing materials. Flashings are used for connecting the windows with roofing and it is the roofing which decides about their selection.

Colors

• inside:
  white
• outside (flashing and the window covering elements):
  RAL 7043 ("traffic grey B")

SkyFens window comparison:

	SkyLight	SkyLight PLUS TERMO	Skylight SUPRO TRIPLE	SkyLight SUPRO TRIPLE TERMO
Uw	1,4 W/m2K	1,3 W/m2K	1,2 W/m2K	1,1 W/m2K
Ug	1,1 W/m2K	1,1 W/m2K	05,5 W/m2K	0,5 W/m2K
Glazing	Single chamber (double glazing)	Single chamber (double glazing)	Double chambers (triple glazing)	Double chambers (triple glazing)
Sound insulation	33 dB	31 dB	32 dB	32 dB
Air permeability	Class 3	Class 3	Class 4	Class 4
Water tightness class	Class E1050	Class E1200	Class E1200	Class E1200
Resistance to wind loads	Class C3	Class C4	Class C4	Class C4
Space between panes filled with inert gas:	Argon	Argon	Argon	Argon
Outside panes:	4 mm, ESG	4 mm, ESG	4 mm, ESG	4 mm, ESG
Interior panes:	4 mm	4 mm	4 mm	4 mm
Total thickness of the glass package:	24 mm	28 mm	48 mm	48 mm
Exterior color:	Gray, RAL 7043	Gray, RAL 7043	Gray, RAL 7043	Gray, RAL 7043
Installation in roof pitch:	15-70°	15-70°	15-70°	15-70°
Warranty:	10 years	10 years	10 years	10 years

Factory in which SKYLIGHTs windows are produced

SKYLIGHT: how to install roof window?
