Flashings for FAKRO roof window

FAKRO flashings fit all types of roofing materials and provide tight and simple incorporating windows in the roof slope. The design of flashings provides a safe drainage of rainwater and snow outside the window, while maintaining the instruction set mounting distance between the window and roofing.

Flashing and window's profile are made as standard of requiring no maintenance aluminum sheet in Grey (RAL 7022).

EZV-A

• Flashing for installing FAKRO roof windows into tiled roofing material up to 45mm in profile.
• Suitable for roof pitches 15 - 90 degrees.
• Available only in standard version.

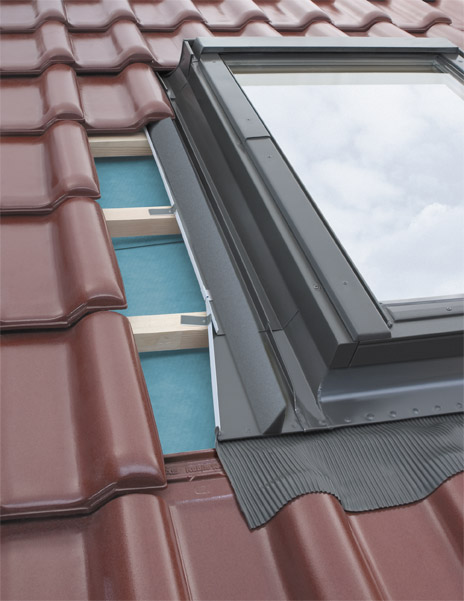

EHV-AT

• Flashing for installing FAKRO roof windows into tiled roofing material up to 90mm in profile.
• Suitable for roof pitches 15 - 90 degrees.
• Available in Thermo version.

ESV and ESV-T

• Flashing for installing FAKRO roof windows into roofing felt, bitumen shingles up to 10mm (2x5mm).
• Suitable for roof pitches 15 - 90 degrees.
• Avialable in standard and Thermo version.

EZV-F and EZV-FT

• Flashing for installing FAKRO roof windows into flat tiles.
• Suitable for roof pitches 15 - 90 degrees.
• Available in standard and Thermo version.

ELV

• Flashing for installing FAKRO roof windows into flat roofing materials up to 10 mm (2x 5mm) in profile.
• Suitabe for bituminous shingle, rolled roofing, "fish scale" plain tiles, etc
• Suitable for roof pitches 15 - 90 degrees.
• Available in standard and Thermo version.

ELV-T

• Flashing for installing FAKRO roof windows into plain tile up to 10mm (2x5mm), 24÷32, 2x(12÷16) height
• Suitabe for plain tiles
• Suitable for roof pitches 15 - 90 degrees.
• Available only in Thermo version.

EBV-P and EBV-PT

• Flashing for installing single roof windows into panel sheet with standing seam.
• Suitable for roof pitches 15-90 degrees
• Available in standard and Thermo version.

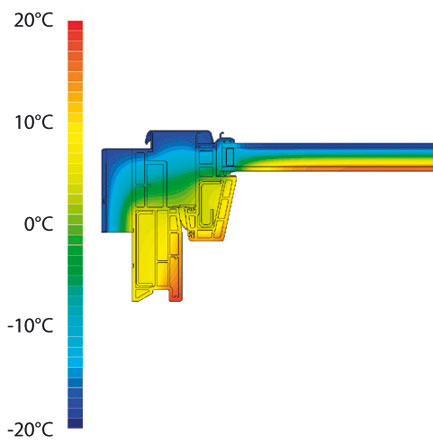

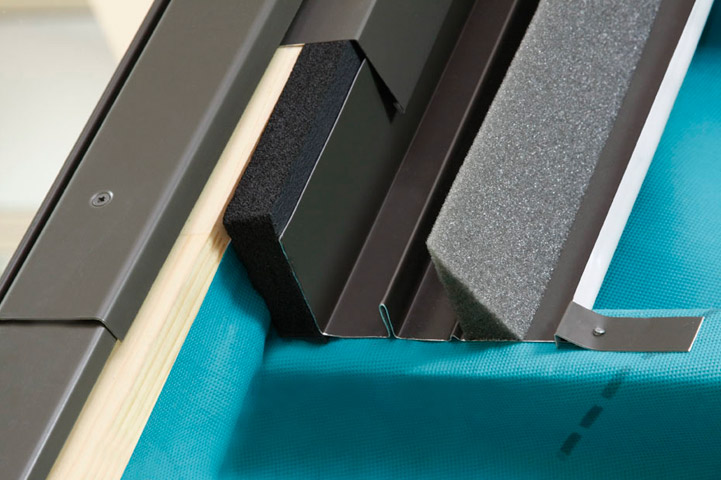

Flashing in Thermo version with additional insulation is an ideal solution which guarantees tight and „warm” connection of the window with the roof covering. It makes it possible to apply insulation of the window above the level of battens. To the inside of the flashing there is glued flexible insulating material which adheres tightly to window frame constituting a thermo-insulated frame. Thermo-insulating material has excellent insulting values (coefficient ג ). Below the level of the battens the window is insulated by a wool insulating kit XDP. The introduced Thermo flashing enhances U value of the window up to 15% depending on the window type, thus avoiding thermal bridging and heat loss.
