Laminated inter glass Passive Triple glazed

FAKRO FTT U6 | super energy saving pine roof window

✔ Wood | clear lacquered ✔ high-pivot ✔ 3-panes ✔ Window U-value: 0.8 W/m²K ✔ Glazing U-value: 0.5 W/m²K
Old price: 9.934,21 kr ( 7.947,37 kr excl. VAT and shipping)
7.947,37 kr inc. VAT, excl. shipping
(6.357,89 kr excl. VAT and shipping) You save: 1.589,47 kr (20%)
ODF-877802

Ships within 15 business days after receipt of your payment

+

Additional products

Flashings for FAKRO roof window Flashings for FAKRO roof window
Note: Only in the thermo version there is an option to choose a flashing for tiled coverings up to 90mm
Choose the roofing material, making sure that your window will be completely weathertight
[Contact us for a price] inc. VAT, excl. shipping
+

Ships within 6-10 business days after receipt of your payment

  • Total cost 7.947,37 kr

Add to wish list

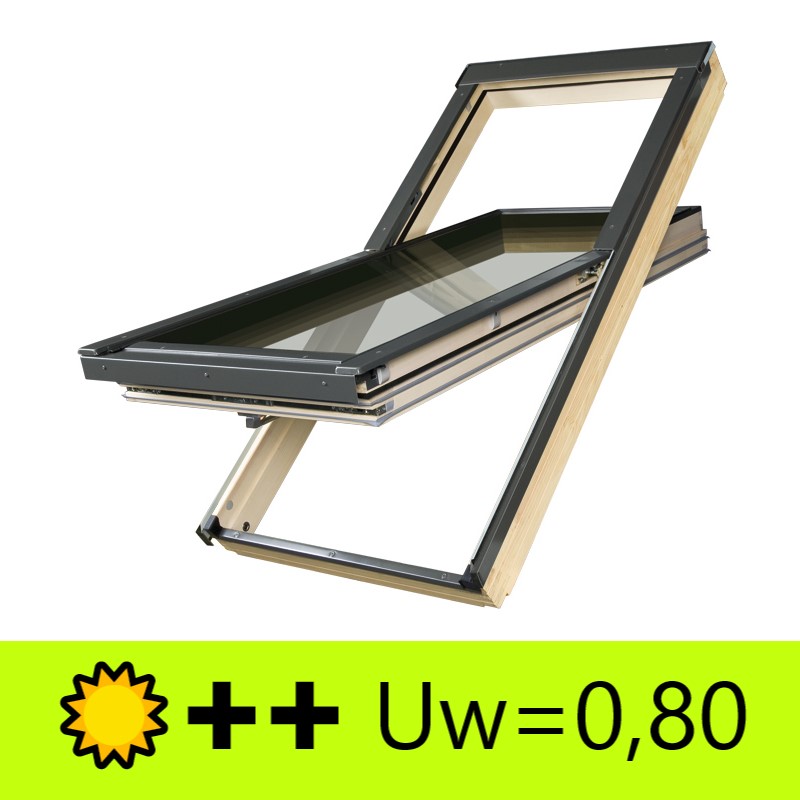

FAKRO FTT U6 is supreme, highly energy efficient wooden roof window dedicated to passive houses.

FAKRO FTT U6 is innovative, super energy saving window with triple glazing. Frame of the window is wider than standard profiles, outer pane is anti-bulglary P2A class. It makes the window extremely solid, safe and tight. High pivot construction does not limit the view when window is opened and ensure comfort of usage. Wood-finish design fits to classic, elegant interiors. Glazing with excellent thermal insulation value makes FTT window perfect for passive buildings and air-conditioned rooms with mechanical ventilation systems.

Benefits of FAKRO FTT U6 roof window

  • Made of pine wood (knot-free), vacuum impregnated and coated with acrylic transparent lacquer;
  • Wide and specially designed window frame  - solid, durable, elegant window;
  • For passive houses;
  • Color of exterior metal sheets - RAL 7022 - brown-grey;
  • Possibility to rotate the sash to 180°;
  • Heat transfer coefficient of the window: Uw=0,8 W/m²K;
  • Anti-burglary topSafe system:
    • specially shaped and mounted hinges prevents from forcing of the hinges and sash
    • metal reinforcement makes break-in using a crowbar much more difficul
    • specially reinforced structure and locking parts.
  • U6 glazing, tripple glazing with Ug=0,5W/m2K, super energy efficient and bulglary-proof;
  • 5 glazing seal provides additional tightness in extreme weather conditions and reduces the micro pulses of the cladding profiles during heavy rain;

windows for passive houses



  • ThermoPro technology:
    • improved thermal insulation - lower heating bills, less warm losses
    • increased durability of wood - water drainage channels, protection from moisture
    • tightness of the window - 3rd and 4th tightness class
    • easier installation - new brackets make mounting quicker
  • Elegant silver handle positioned on the lower part of the sash for easy operation;
  • Installation with flashing in roofs with pitches between 15° and 70°;
  • Factory pre-fixed, lower angle brackets for installing the window in the roof;
  • Wide range of internal and external accessories; the same as those used with wooden windows;
  • Warranty
    • hail - lifetime warranty
    • whole window - 10 years
    • glazing - 20 years
    • hinges, fitting - 20 years

Do I need flashing? Which flashing to choose?

Flashings are essential for the correct installation of roof windows. It is a set of aluminium sheets, precisely designed, which ensures a durable and neat fit with the roof covering.The main task of the flashing is to drain water and snow away from the window and protect it against the wind. The basic color is Grey – brown (RAL 7022) - the same as window outside profiles, thanks to which FAKRO windows go well with standard colors of roofing materials. Flashings are used for connecting the windows with roofing and it is the roofing which decides about their selection. Below we present available FAKRO flashings:

To FTT U6 window there are recommended following flashings with additional insulation:

FAKRO Premium flashings
EHV-AT Thermo EZV-FT Thermo ELV-T Thermo EBV-PT Thermo ESV-T Thermo
fakro flashing for tiles fakro flashing for flat roof tiles fakro flashing for slate fakro flashing for metal Panel Sheet with steam fakro flashing for asphlat, bitumen chippings
For high – profiled coverings up to 90mm:
  • ceramic and concrete roof tiles,
  • metal roof tiles,
  • thatch roof
For flat roof tile with thichness up to 45mm For slate roof coverings 32mm (8+8mm or 16+16mm):
  • plain tile,
  • slate,
  • shingle,
Steel Panel Sheet - with prefabricated (system) joints Flat, thin roof coverings up to 10mm (2 layers x 5mm):
  • asphalt
  • bitumen & chippings,
  • metal sheets,
  • slate
Can be used on roofs with pitches between 15° and 90° Can be used on roofs with pitches between 15° and 90° Can be used on roofs with pitches between 15° and 90° Can be used on roofs with pitches between 15° and 90° Can be used on roofs with pitches between 15° and 90°

FAKRO accessories to roof windows

Each FAKRO roof window can be upgraded by external and internal accessories. FAKRO offers a lot of products from manual decorative blinds, through light control and heat protection to solar or electro Z-wave accessories. FAKRO offers wide range of designs and colors to cater to all tastes.

To choose the perfect FAKRO product you must precise what destination it should have. It is important to adjust the the roof window to your activity and preferrences. E.eg. in bedroom it is good to install blackout blind, thank's to which sun light, or moon light won't dusturb while sleeping. In an office, living room, kitchen, or bathroom, decorative blind will be enough - just to cover the glass and give the privacy. Anti heat blinds are perfect for all types of rooms. they will prevent from heat and will help to reduce temperature on the attic. Solar-powered and electro Z-wave products are dedicated for those who seek for comfortable, hi tech solutions, want to connect windows and blinds to smart home system or want to use ecological poducts. Also FAKRO solar powered and Z-Wave accessories are perfect for high-installed windows, where manual operation is difficult or not possible. Elegant remote controls will allow to set opening and closing properties.

Internal accessories

  FTS,
FTP,
FTU
FTT U5* FPT U5* FTT U6,
FTT U8
PTP, PTP-V FPP-V, FPU-V PPP-V FEP FYP-V PYP-V FDY-V FGH-V FTP/D, FTU/D FXP, FXU FWR, FWL FWP
up.
sash
bot.
sash
up.
sash
bot.
sash
FAKRO AJP + + + + + + + + + + + + + + + +3 +
FAKRO AJP z-WAVE + + - + + + + + + + - + - + - +3 +
FAKRO ARS + + + + + + + + + + + + + + + + +
FAKRO ARP + + + + + + + + + + + - + + + +3 +
FAKRO ARP Z-Wave,
ARP WiFi
+ + - + + + + + + + - - - + - +3 +
FAKRO ARF + + + + + + + + + + + + + + + +3 +
FAKRO ARF Z-Wave, ARF WiFi + + - + + + + + + + - + - + - +3 +
FAKRO APS + + + + + + + + + + + + + + + +3 +
FAKRO APF + + + + + + + + + + + + + + + +3 +
FAKRO AMS + + + + + + + + + +1 +1 - - +1 +1 + +



External accessories

  FTS,
FTP,
FTU
FTT U5* FPT U5* FTT U6,
FTT U8
PTP, PTP-V FPP-V, FPU-V PPP-V FEP FYP-V PYP-V FDY-V FGH-V FTP/D, FTU/D FXP, FXU FWR, FWL FWP
up.
sash
bot.
sash
up.
sash
bot.
sash
FAKRO AMZ,
AMZ New Line
+ + + + + + - + + + +4 + +4 + +4 - -
FAKRO AMZ Z-WAVE, AMZ Solar,
AMZ WiFi
+ + + + + + - + + +4 +4 +4 +4 + +4 +3,4 +3,4
FAKRO AME - - - - - - + - - - - - - - - - -
FAKRO ARZ-H + - - - + - - +4 - +4 - +4 - +2 - - -
FAKRO ARZ Z-WAVE, ARZ Solar, ARZ WiFi + + + + + + - +4 +4 +4 +4 +4 - +2 +4 - -
FAKRO ARK-Z Wave, ARK Solar - - - - - - + - - - - - - - - - -
  • * - interior accessories for special request, exterior accessoies -standard
  • 1 -for window opening up to 240 cm length
  • 2 - with 20 cm distance between the windows
  • 3 - installation by FAKRO service required
  • 4 - for special request, limited usage

How to choose proper size of FAKRO accessories?

First af all you should check what size does your windows have. You can do it by checking the nameplate from the window. It is placed on the lower part of the sash, and you need to open the window to see it. After establishing the size ofthe window, just choose blind, awning blind, or shutter in the corresponding size.

Warning!
The size of e.g. 78x140 cm applies to roof window's size! The blind itself is smaller. Window's size can be found on the nameplate located at the top of the window. There is no need to measeure the window. Just read the size from the nameplate and order accessories in the corresponding size.

All the FAKRO accessories you can find here

Technical specification of the FAKRO FTT roof windows

FTT roof windows FTT/U roof windows
Inside color / outside color:
Natural (wood)
/
Grey (RAL 7022)
White (NCS S 0502-Y)
/
Grey (RAL 7022)
Construction:
Pine wood coated with 2 layers of transparent lacquer Pine wood coated with 3 layers of polyurethane varnish
FAKRO roof window name:
FTT U8 FTT U6 FTT R3 FTT/U U8 FTT/U U6 FTT/U R3
Window U-value [W/m2K]:
Uw = 0,58 Uw = 0,80 Uw = 0,81 Uw = 0,58 Uw = 0,80 Uw = 0,81
Acoustic insulation [dB]:
Rw = 36 (-2;-5) Rw = 38 (-1;-4) Rw = 42 (-2;-4) Rw = 36 (-2;-5) Rw = 38 (-1;-4) Rw = 42 (-2;-4)
Glazing type and glazing U-value:
Quadruple glazing U8
4H-12-4HT-12-4HT-12-4HT
Ug=0,3W/m2K
Triple glazing U6
6H-18-4HT-18-33.2T
Ug=0,5W/m2K
Triple glazing R3
8H-16-4HT-18-33.2SIT
Ug=0,5W/m2K
Quadruple glazing U8
4H-12-4HT-12-4HT-12-4HT
Ug=0,3W/m2K
Triple glazing U6
6H-18-4HT-18-33.2T
Ug=0,5W/m2K
Triple glazing R3
8H-16-4HT-18-33.2SIT
Ug=0,5W/m2K
Inner glass:
4 mm 2x 3mm, laminated (class P2A) 2x 3mm, laminated (class P2A) 4 mm 2x 3mm, laminated (class P2A) 2x 3mm, laminated (class P2A)
External glass:
4 mm, toughened 4 mm, toughened 4 mm, toughened 4 mm, toughened 4 mm, toughened 4 mm, toughened
Inert gas filled panes:
Krypton Argon Argon Krypton Argon Argon
Spacers:
Warm TGI Warm TGI Warm TGI Warm TGI Warm TGI Warm TGI
Air inlet type (air flow [m3/h]):
- - - - - -
Installation range (roof slope) :
15° - 70° 15° - 70° 15° - 70° 15° - 70° 15° - 70° 15° - 70°

Roof windows

Material:
  • Wood | clear lacquered
Opening:
  • high-pivot
Glazing:
3-panes
Window U-value:
0.8 W/m²K
Glazing U-value:
0.5 W/m²K
Control:
Manuall

VELUX glazing technical data

Glazing (--51) (--61) (--64) (--70) (--68) (--66) (--62) (--62D) (--67) (--69) (--70Q) (--82) (--15)
Thermal transmittance
W/m2K
1.0 0.6 0.6 1.0 0.7 0.6 0.5 1.0 0.5 0.7 1.0 0.3 0.7
Amount of
chambers
1 2 2 1 2 2 2 1 2 2 1 4 2
Warm TGI spacer
Inert gas
filled panes
Argon Argon Argon Argon Argon Argon Krypton Krypton Krypton Argon Argon Krypton Argon
Toughened
outer pane
Laminated opaque
inner pane
X X X
Safety class X X X P2A P2A P2A P2A P2A P2A P2A P4A P2A P2A
Ornamental X X X X X X X X X X X X X
Enhanced noise
reductiont
X X X X X X
Easy-to-clean
coating
X X X X X X X X X
Anti-dew effect X X X X X X X X X
Sound insulation
Rw (dB)
31 32 35 35 35 37 42 44 38 35 35 37 35



Fakro FTT roof window leaflet (Fakro_FTT_leaflet.pdf, 520 Kb) [Download]
