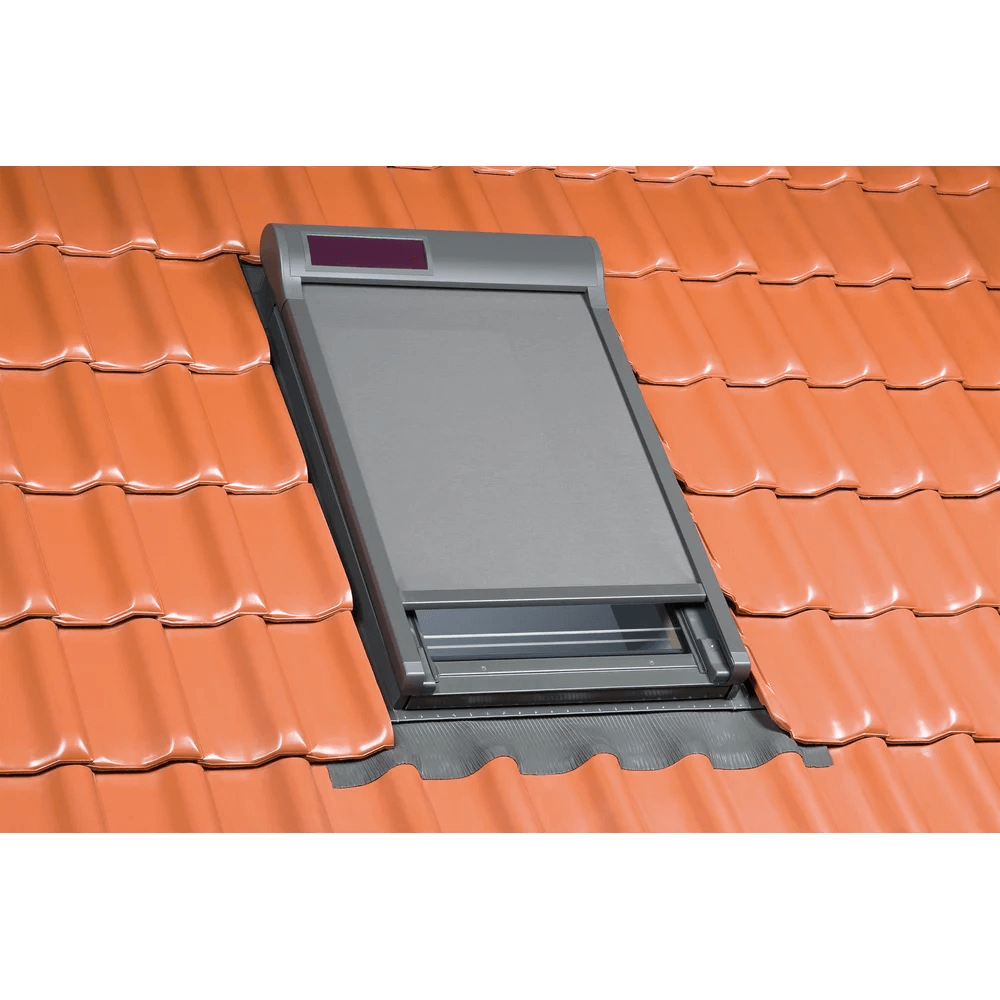

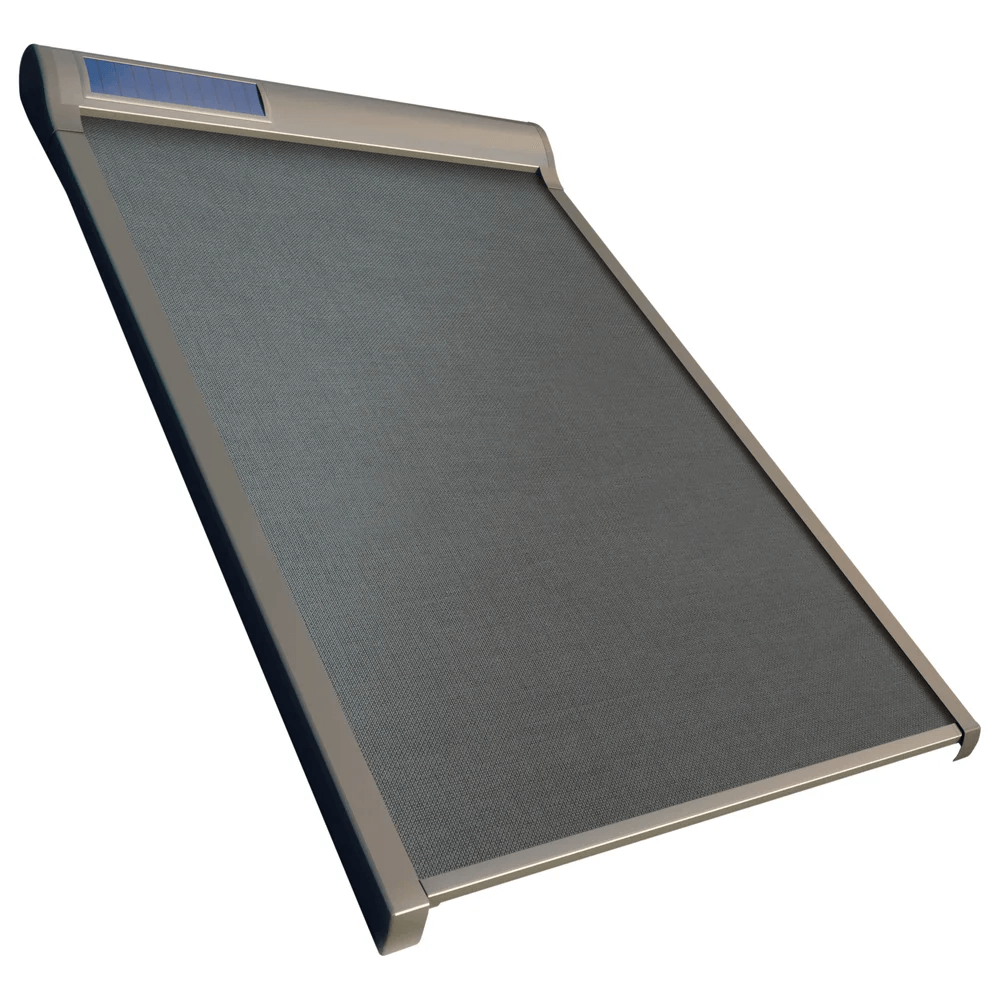

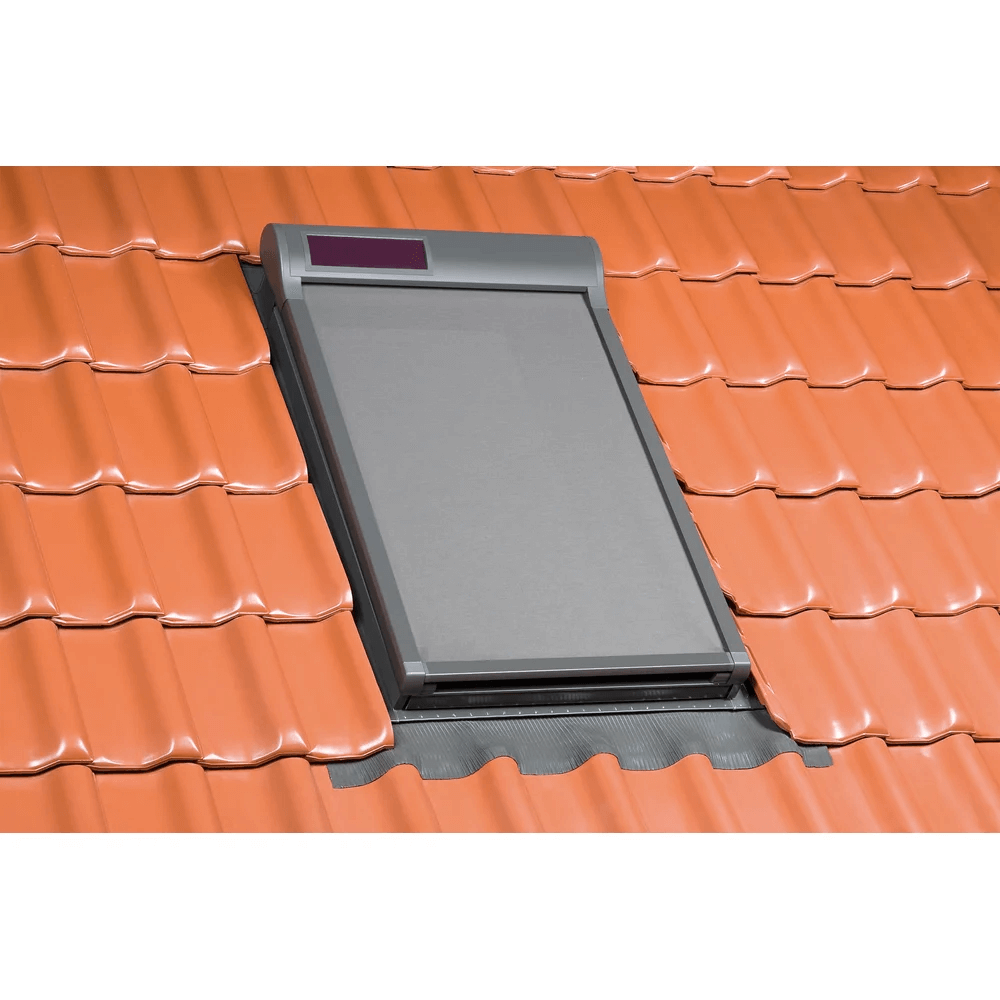

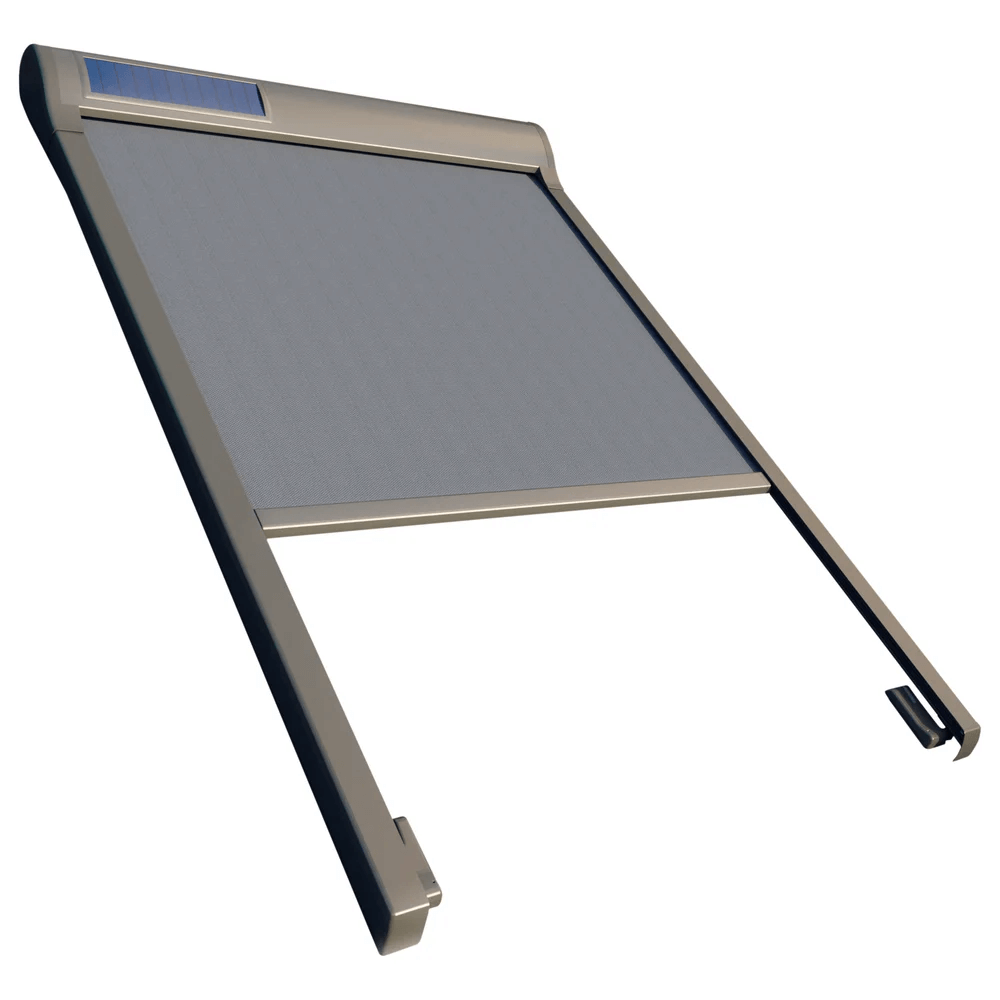

AMZ: awning blind for Fakro centre-pivot and top-hung-and-pivot roof windows

The awning blind provides optimum protection from overheating while, at the same time providing a view to the outside. Fakro awning blind reflects sun rays before they reach the glass and thus protects against heat build-up on sunny days, providing relief for the eyes and protection from the harmful effects of strong reflected light, which is especially important when working with computers.

The awning blind AMZ is made of durable, weather- resistant fibre glass fabric. The fabric is roller mounted, spring loaded and fitted inside an aluminium casing which is installed at the top of the window. This enables easy control of the blind and makes it possible to use a wider fabric, thus providing additional protection against ingress of light.

Important information

• Awning blind AMZ Solar is designed for centre-pivot and top-hung-and-pivot windows.

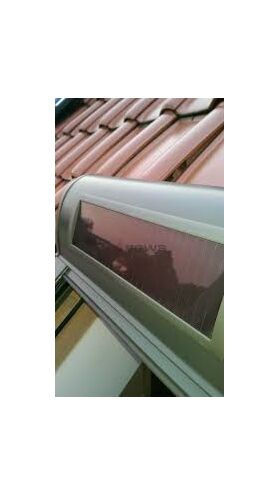

• AMZ Solar is powered by solar batteries
• The remote control is not included.

Characteristic:

• the best protection from the heat;
• effective shading of the room whilst still allowing some light in;
• comfortable use – we can cover the window for a whole summer without the need to roll it up and down every day;
• easy installation – we install the blind from the inside (unscrew four screws and then rescrew them again in the same holes);
• protection from harmful UV radiation,when used in rainy weather, reduces noise of rain and hailstones.

Size

Warning!
The size of e.g. 78x140 cm applies to roof window's size! The blind itself is smaller. Window's size can be found on the nameplate located at the top of the window. There is no need to measeure the window. Just read the size from the nameplate and order accessories in the corresponding size.

Available fabrics of awning blind for FAKRO roof windows:

• relative fabric transparency = 10%

• relative fabric transparency = 1%

Control devices for FAKRO Z-Wave / SOLAR products

Kindly note: the product is sold separately!

The products listed below are not delivered with a roof window, shutters or blinds. They are sold separately so that each customer can choose the product that best suits their needs.

Product name:	ZRH1	ZRH12	ZRW7	ZRS24
Device type:	one-channel remote control	multi-channel remote control	wireless, multi-channel wall keyboard	multi-channel remote control
-
Compatibility with FAKRO Z-WAVE products:	✓	✓	✓	✓
Compatibility with FAKRO SOLAR products:	✓	✓	✓	✓
Amount of supported devices:	up to 12 devices in one group	do 12 urządzeń w każdej z 12 grup	up to 12 devices in each of the 7 groups	up to 24 devices in each of the 24 groups
"PLACE" function:	✕	✕	✕	✓ up to 24 devices in each of the 24 places
"SCENE" function:	✕	✕	✕	✓ up to 24 sceens
Appearance information
Available in white:	✓	✓	✓	✓
Available in black:	✕	✓	✕	✓
Dimensions:	48x125x17 mm	48x125x17 mm	80x80x20 mm	52x180x20 mm
Technical data
LCD display:	-	-	-	240x320 px
Radio protocol:	Z-Wave	Z-Wave	Z-Wave	Z-Wave
Power supply:	2x batteries AAA	2x batteries AAA	4x batteries AAA	3x batteries AKU AAA
USB charging possible:	✕	✕	✕	✓
Working temperature:	from +5°C to +40°C	from +5°C to +40°C	from 0°C to +40°C	from +5°C to +40°C
