Features
- stile ends
- white hatch
- three seals
- handrail
- non-slip treads set flush with ladder strings
- fully assembled and ready for quick installation in the ceiling
- possibility of installing additional accessories
- 3 yeahr warranty
Technical specification:
- Satisfy the requirements of EN 14975
- Maximum loading: 160 kg

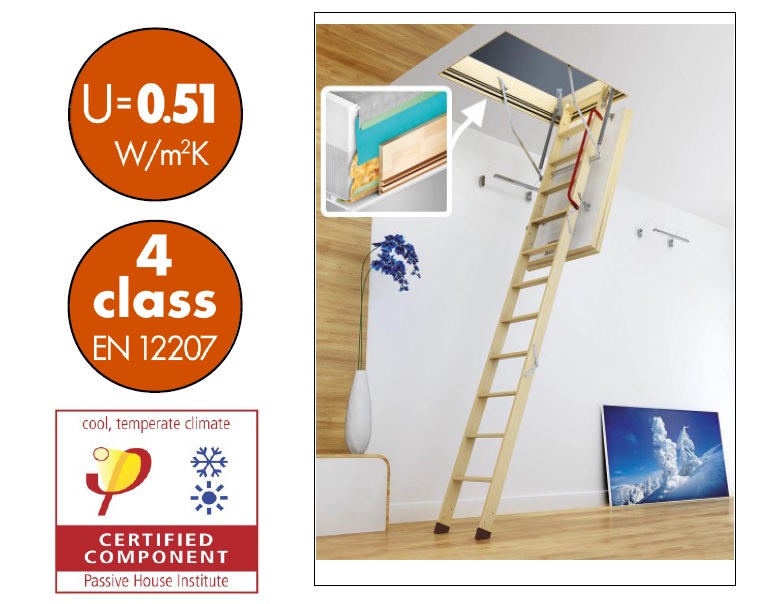

- Loft ladder U-Value: U=0.51 W/m²K
- Insulation thickness: 7.4 cm
- Hatch thickness 8 cm

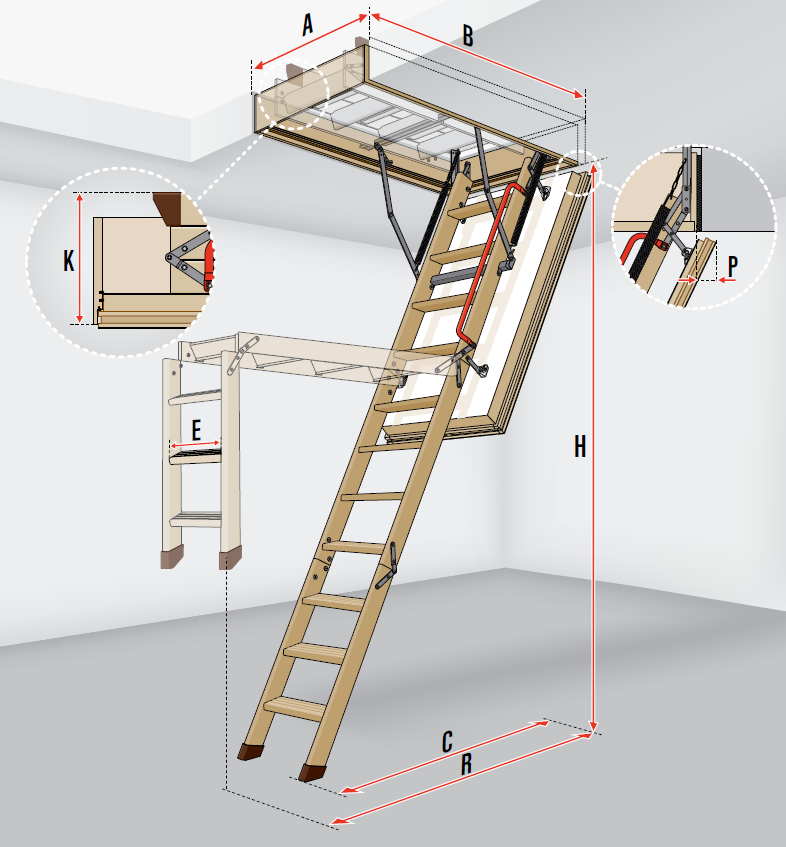

Technical data
| Ceiling opening dimension / room height[cm] | AxB hH | 60x120 h280 | 70x120 h280 | 70x130 h280 | 70x140 h280 | 60x130 h305 | 70x130 h305 | 70x140 h305 |
| Box external dimension [cm] | WxL | 58x118.4 | 68x118.4 | 68x128.4 | 68x138.4 | 58x128.4 | 68x128.4 | 68x138.4 |
| Box interior dimension [cm] | MxN | 54x114 | 64x114 | 64x124 | 64x134 | 54x124 | 64x124 | 64x134 |
| Box height [cm] | 22 | |||||||
| Folded ladder height [cm] | K | 33 | ||||||
| Swing space [cm] | R | 160 | 175 | |||||
| Distance after ladder unfolding [cm] | C | 127 | 135 | |||||
| Tread length [cm] | E | 34 | ||||||
| Tread width [cm] | S | 8 | ||||||
| Tread thickness [cm] | Z | 2 | ||||||
| Distance between each tread [cm] | G | 25 | ||||||
Installation how-to-video
U-value:
0.51 W/(m²K)
