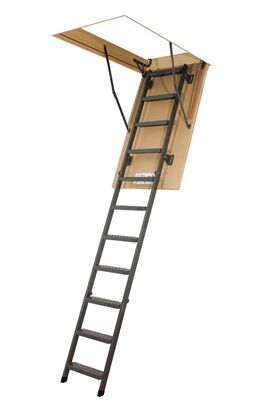

The FAKRO loft ladder LMS is a 3-section metal ladder with the insulated hatch and ladder box made of pine.
Features:
- stile ends
- beige hatch
- peripheral seal
- non-slip treads
- fully assembled and ready for quick installation in the ceiling
- possibility of installing additional accessories
- 3 yeahr warranty
Technical specification:
- Satisfy the requirements of EN 14975
- Maximum loading: 200 kg
- Loft ladder U-Value: U=1.1 W/m²K
- Insulation thickness: 3 cm
- Hatch thickness: 3.6 cm

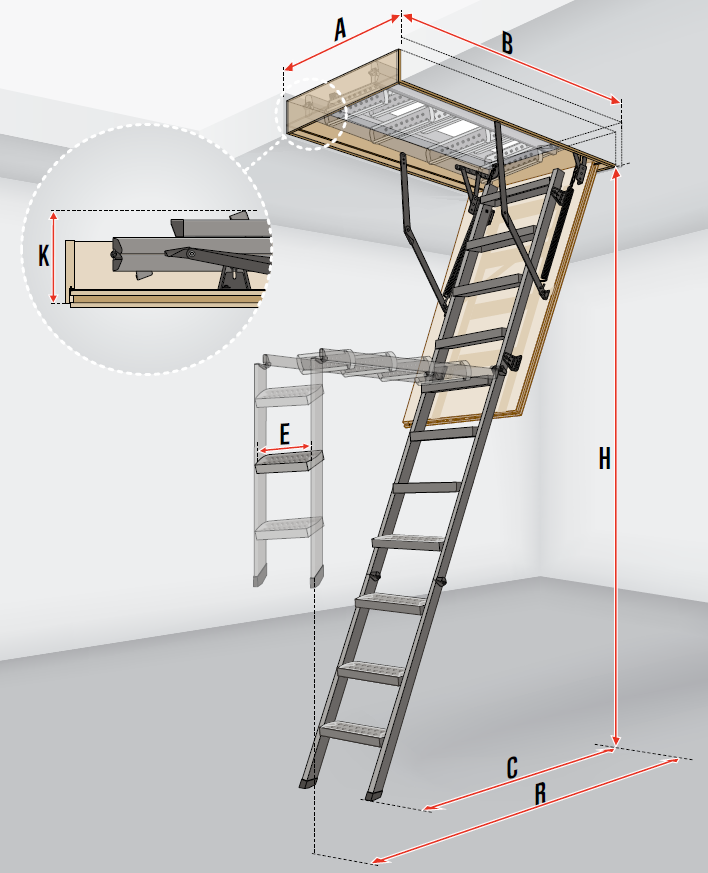

Technical data
Ceiling opening dimension / room height | AxB h=H [cm] | 60x120 h=280 |
70x120 h=280 |
Box external dimension | WxL [cm] | 58x118.4 | 68x118.4 |
Box interior dimension | MxN [cm] | 54x114 | 64x114 |
Box height | [cm] | 25 | |
Folded ladder height | K [cm] | 25.5 | |
Swing space | R [cm] | 34 | |
Distance after ladder unfolding | C [cm] | 8 | |
Tread length | E [cm] | 34 | |
Tread width | S [cm] | 8 | |
Distance between each tread | G [cm] | 25 |
U-value:
1.1 W/(m²K)
