FAKRO Chain motor ZWS230, suply voltage 230V AC

FAKRO Chain motor ZWS230, suply voltage 230V AC

ATTENTION!
This product is not compatible Fakro FTT U6, FTT U8 and FDY roofwindows. For those types of windows please contact our customer service.

2.628,29 kr inc. VAT, excl. shipping
(2.102,63 kr excl. VAT and shipping)
ODF-850037

Ships within 10-12 business days after receipt of your payment
+ −

Additional products

Remote controllers for FAKRO devices Remote controllers for FAKRO devices
786,18 kr inc. VAT, excl. shipping (628,95 kr excl. VAT and shipping)
+ −

Ships within 1-3 business days after receipt of your payment
  • Total cost 2.628,29 kr

Add to wish list

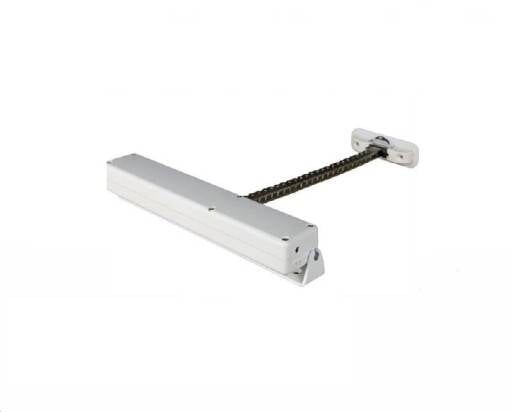

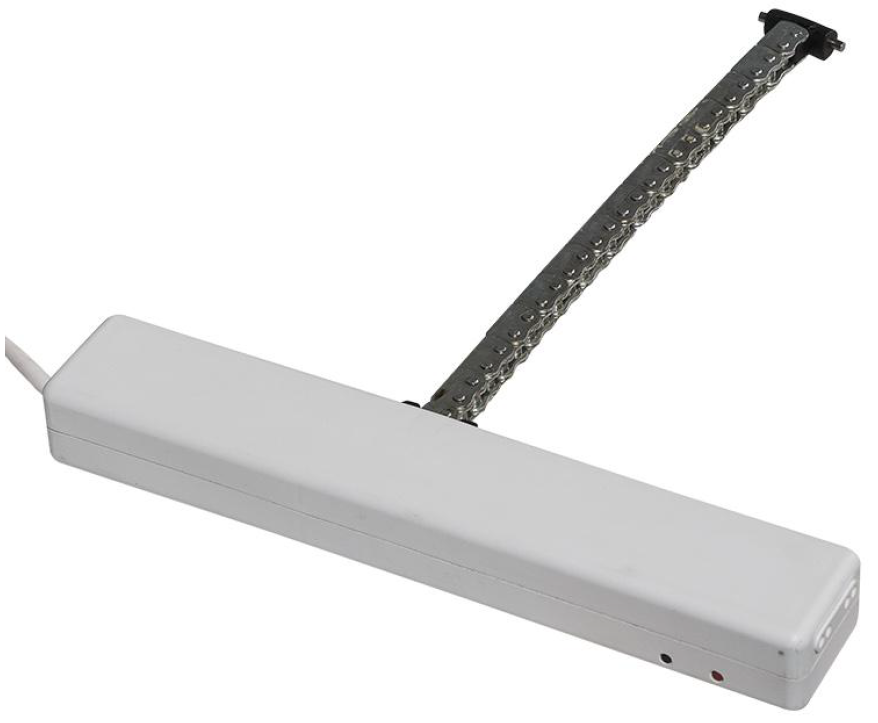

The ZWS12 and ZW230 chain motors thanks to their small dimensions and suitable force output are ideal for roof window operating, being fully compatible with the Z-Wave system. The motors can be applied in both the centre pivot and top hung and pivot roof windows as well as windows of non-standard dimensions. The maximum chain reach is 24cm for ZWS12 and 36cm for ZW230. The motors are equipped with built-in overload protection which acts as a sensor of correct window closing.

Technical parameters:
Chain reach 360 mm
Supply voltage 230 Vac
Rated current 0.12 A
Power output 15 W
Chain pushing force 200 N
Chain stroke rate 9.7 mm/s
Working temperature -9° C bis +50° C
Power cable 3 x 0.75 mm2 (1.5 mb)
Dimensions 362 x 47 x 33.5 mm

VELUX glazing technical data

Glazing (--51) (--61) (--64) (--70) (--68) (--66) (--62) (--62D) (--67) (--69) (--70Q) (--82) (--15)
Thermal transmittance
W/m2K		 1.0 0.6 0.6 1.0 0.7 0.6 0.5 1.0 0.5 0.7 1.0 0.3 0.7
Amount of
chambers		 1 2 2 1 2 2 2 1 2 2 1 4 2
Warm TGI spacer ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Inert gas
filled panes		 Argon Argon Argon Argon Argon Argon Krypton Krypton Krypton Argon Argon Krypton Argon
Toughened
outer pane		 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Laminated opaque
inner pane		 X X X ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Safety class X X X P2A P2A P2A P2A P2A P2A P2A P4A P2A P2A
Ornamental X X X X X X X X X X X X X
Enhanced noise
reductiont		 X X ✓ ✓ X ✓ ✓ X ✓ ✓ X X ✓
Easy-to-clean
coating		 X X ✓ X X ✓ X X ✓ X X ✓ X
Anti-dew effect X X X X X ✓ ✓ X ✓ X X ✓ X
Sound insulation
Rw (dB)		 31 32 35 35 35 37 42 44 38 35 35 37 35
