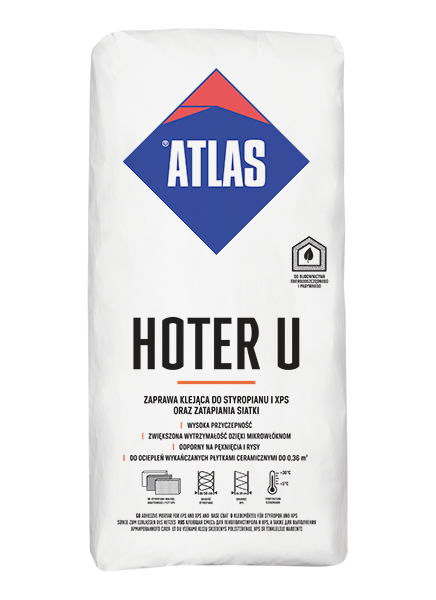

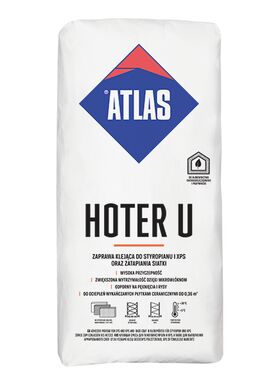

Atlas Hoter U - 2 in 1 | adhesive for fixing EPS, XPS boards and for mesh embedding

124,32 kr / 25 kg inc. VAT, excl. shipping
(99,45 kr excl. VAT and shipping)
MAG-ATL-W-KO003-A0000-AT1A-2500

More than 20 available.
Ships within 1-3 business days after receipt of your payment.

+

Additional products

Atlas Uni-Grunt |fast drying priming emulsion Atlas Uni-Grunt |fast drying priming emulsion 121,47 kr inc. VAT, excl. shipping (97,18 kr excl. VAT and shipping)
+

Less than 20 available.
Ships within 1-3 business days after receipt of your payment.

  • Total cost 124,32 kr

Add to wish list

Adhesive for foamed polystyrene and XPS and for execution of the reinforced layer. 2 in 1 - it is designed for fixing thermal insulation panels and for execution of the reinforced layer in thermal insulation of buildings technology. Element of thermal insulation systems – it is a part of composite thermal insulation systems, awarded with European (ETA) technological approvals. Enables fixing various expanded and extruded polystyrene boards - including expanded polystyrene boards with addition of graphite and elasticized.

  • high adhesiveness
  • good water vapor permeability
  • reinforced with microfibres
  • resistant to cracks and scratches
  • for bare and rendered walls

Types of construction substrates:

  •  all classes of concrete,
  • aerated concrete,
  • cement
  • plaster,
  • cement-lime plaster,
  • sandstone and bare walls made of brick,
  •  blocks,
  • hollow brick and other similar ceramic or silicate materials.

Properties:

  • Elastic – compensates strain resulting from the influence of temperature and usage upon other layers of the system.
  • Increased resistance to cracking – it is reinforced with cellulose fibres.
  • Highly adherent – strongly adheres to difficult substrates, e.g. substrates covered with strongly adhering paint coats.
  • Vapor permeable – does not limit the flow of water vapor through the insulated partition.

Consumption:

Individual consumption of the adhesive depends on the properties of the substrate (its evenness among others) and on the accepted technology of fixing the panels.

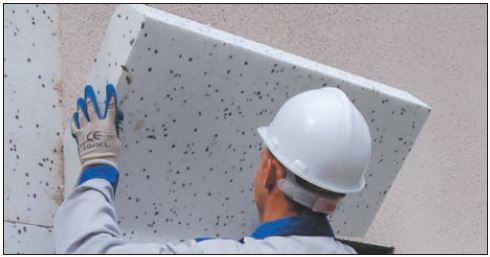

  • Fixing boards: from 4.0 to 5.0 kg/m2

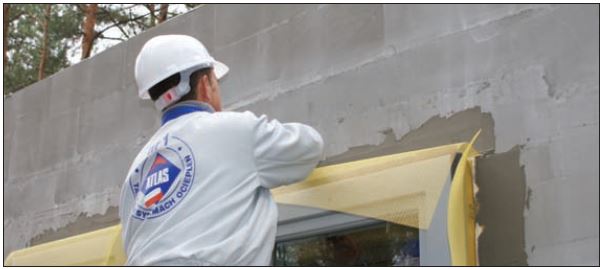

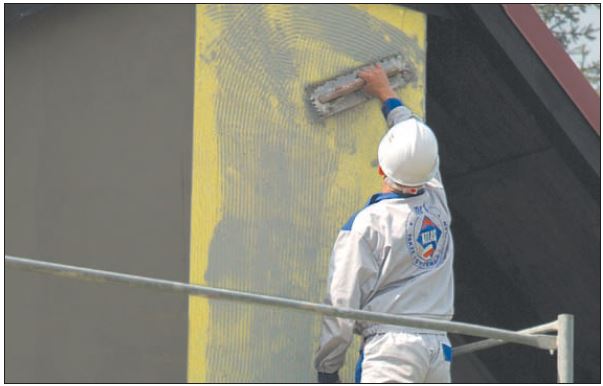

  • Reinforced layer installation: from 3.0 to 3.5 kg/m2.

Packaging:

Paper bags: 25 kg
Pallet: 1200 kg in 25 kg bags

Product comparison

  Stopter K-50 Stopter K-20 Stopter K-100 Hoter U Hoter S Grawis U Grawis S Roker U Roker W

Insulation aplication + +   + + + + + +
Mesh embedding + + + +   +   +
Type of insulation
EPS + + + + + + +
XPS   + + + +
Mineral wool +             + +
Parameters
Adhesion to concrete min. 0,25MPa min. 0,25MPa   min. 0,25MPa min. 0,25MPa min. 0,25MPa min. 0,25MPa min 0,25MPa min 0,25MPa
Adhesion to insulation products min. 0,08MPa (EPS)
min.0,08MPa (MW)
min 0,08MPa min. 0,08MPa min. 0,08MPa min. 0,08 MPa min. 0,08MPa min. 0,08MPa min. 0,08MPa min 0,08MPa
Temperature of application 5° to 30°C 0°C to 25°C 5°C to 30°C 5°C to 30°C 5°C to 30°C 5°C to 30°C 5°C to 30°C 5°C to 30°C 5°C to 30°C
Height limit for application
EPS, XPS to 25m to 25m to 25m to 25m to 25m to 25m to 25m
Mineral wool no limit             no limit no limit



VELUX glazing technical data

Glazing (--51) (--61) (--64) (--70) (--68) (--66) (--62) (--62D) (--67) (--69) (--70Q) (--82) (--15)
Thermal transmittance
W/m2K
1.0 0.6 0.6 1.0 0.7 0.6 0.5 1.0 0.5 0.7 1.0 0.3 0.7
Amount of
chambers
1 2 2 1 2 2 2 1 2 2 1 4 2
Warm TGI spacer
Inert gas
filled panes
Argon Argon Argon Argon Argon Argon Krypton Krypton Krypton Argon Argon Krypton Argon
Toughened
outer pane
Laminated opaque
inner pane
X X X
Safety class X X X P2A P2A P2A P2A P2A P2A P2A P4A P2A P2A
Ornamental X X X X X X X X X X X X X
Enhanced noise
reductiont
X X X X X X
Easy-to-clean
coating
X X X X X X X X X
Anti-dew effect X X X X X X X X X
Sound insulation
Rw (dB)
31 32 35 35 35 37 42 44 38 35 35 37 35



(EN) Technical Data (hoter_u_td_en.pdf, 327 Kb) [Download]

(DE) Technische Daten (hoter_u_td_de.pdf, 231 Kb) [Download]
